See Charles Renard. In the chapter dedicated to this inventor we saw the Vermiculaire engine devised in 1878.

-There it is mentioned that in 1884, together with Captain Krebs, he built an 8 HP multipolar electric motor to mount it on the “La France” airship.

-The photograph of this engine is offered below.

“Renard and Krebs”

-In 1896 it is said that he presented the Adianomic engine, running on steam with 8 radial cylinders and that it was installed on the "General Meusnier" airship.

“Renard Adianomic engine”

-In 1897 it was followed by the 3-cylinder steam engine.

“Renard steam engine”

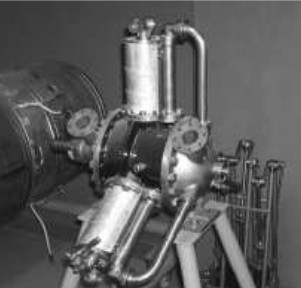

“Renard 3-cylinder at the MAE”

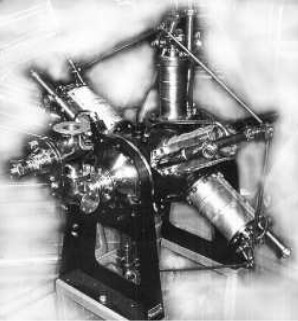

“Renard 6-cylinder at the MAE”

-At the Air and Space Museum in Le Bourget, near Paris, they preserve a 3-cylinder steam engine and another with six cylinders: a double row with three cylinders each.

-From Renard is also known his explosion engine that started its operation with gasoline and switched to hydrogen -the same used by airships for support. This was from 1890 to 1893.

-The rough treatment of the strong hydrogen charges broke the pieces. It was calculated for 100 CV.

“Renard, 100 CV”

-During a last and profitable visit to the Le Bourget Air and Space Museum in Paris, new photographs and views of the Renard engines exhibited have been compiled in new mono-themed sections and also in the Engine Reserve of the same Museum.

-Reviewing Renard's work we have found the electric motor of the airship "La France" (1884) as it was exhibited in Chalais-Meudon.

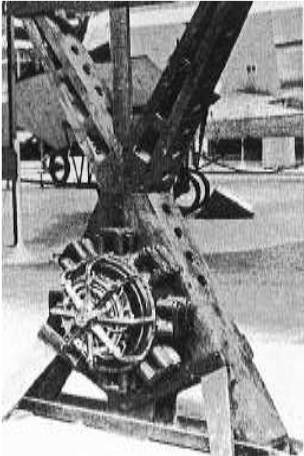

"Renard's Electric Motor at Chalais-Meudon"

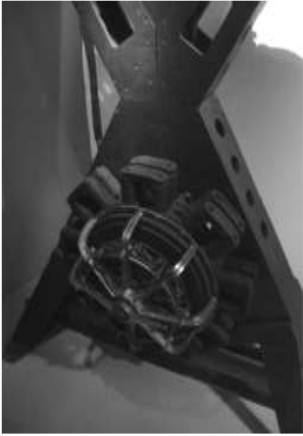

"Renard electric motor at the MAE today"

-Charles Renard also made a bulky 100 hp engine that had a length of 3.80 m. The photos below are of Chalais before, and at the MAE today.

"100 cv engine at Chalais-Meudon"

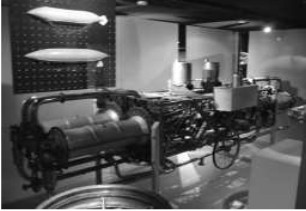

"Renard 100 CV engine at the MAE"

-In the same way, the steam and adianomic are preserved as we see below.

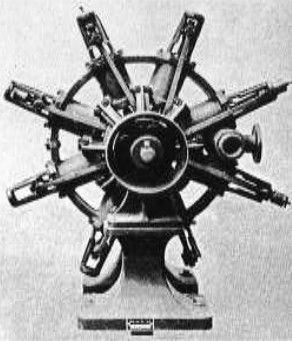

"The adianomic engine yesterday"

“The andianomic Renard today”

-The engine with three steam cylinders is the one that follows, as it was at Chalais-Meudon, and restored at the MAE.

"3-cylinder steam engine at Chalais-Meudon"

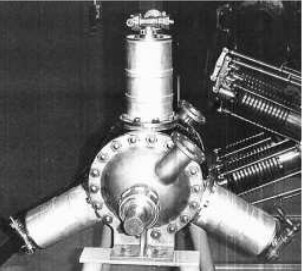

"And as it is at the MAE reserve store"

-The six cylinder as it was exhibited in Chalais, with a dynamometric windlass, in 1900.

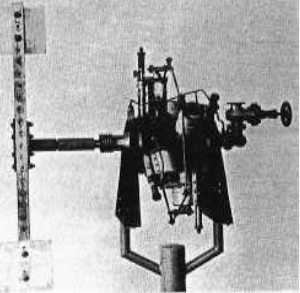

“Renard 6-cylinder steam engine at Chalais in 1900”

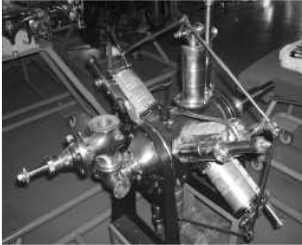

“The same 6-cylinder at the MAE”

-The Vermicular is also on display at the MAE, lovingly restored.

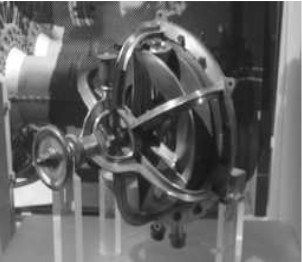

“Renard Vermicular engine”

-And a rear-view photograph of it from the year 1878.

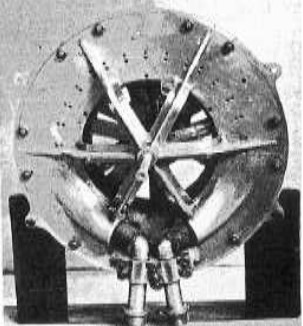

“Renard Vermicular rear view”

-Finally a toroidal engine that he called rotary motor in scissors.

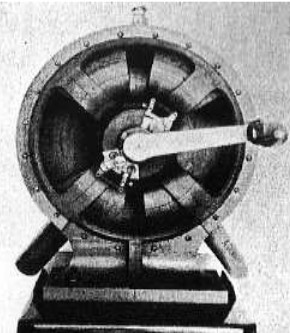

“Toroidal Renard”

-Only the existence of this wooden model of the toroidal is known.

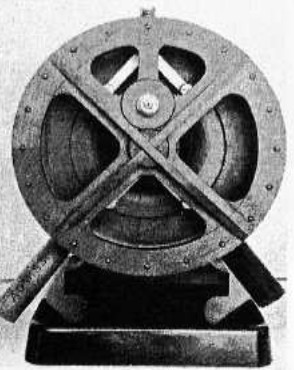

“Renard Toroidal engine rear view”

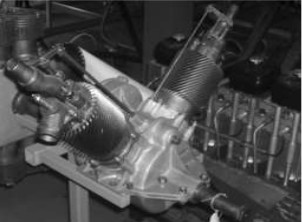

-A curious two-cylinder V-engine, whose propeller-fin design is a powerful eye-catcher, is attributed to Renard.

“Renard V2, at the MAE reserve store”
