Engines in north east Spain (Catalonia)

List of Engines in the N-E

Aerospace engines in the north-east of Spain
(Catalonia)

List of localized engines

Index by Museums, Institutions, Clubs, Private collections, etc.
(Engines out of aircraft)

(Author's note: Where is indicated "Missing", is referred to loss of tracks because a sneak thief or a few people dedicated to dispossession have taken advantage of confused situations).

-MNACTEC.- (Terrassa):
--Elizalde Lorraine
--Elizalde Beta
--Elizalde Sirio
--RR Merlin
--SAN V-6 (stock)
--Allison 250 (stock)
--Hispano Suiza V-12 Y
--Pulso Casanova
--Documentation (J. Maluquer and W. Ricart)

-MNACTEC.- (Museu Claret, Girona):

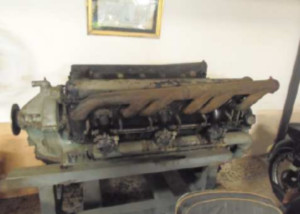

--V12 (M-100 ó H-S V12) = Is Avia.

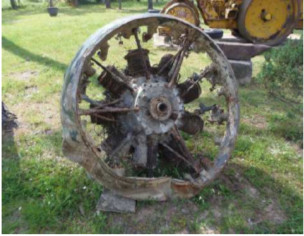

--Remainders Bristol Pegasus

-FPAC (Fundació Parc Aeronautic de Catalunya): (SBD)
--Bristol Hercules
--Elizalde Tigre (4)
--Elizalde M-21 (3+1 mutilado)

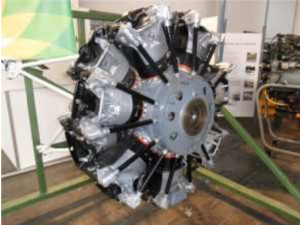

--PW R-1820
--Lycomings (2)
--Continental (2)
--DH Gipsy Six
--PW R-1340

-Escola “Illa dels Banyols”: (Prat del LL.)
--JT9D (IB) + another at the El Prat Town house.

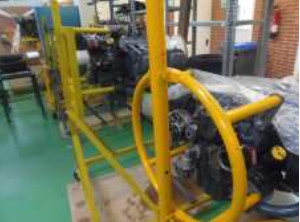

--Lycomings (8 various, one on a bench)
--Turbomeca Astazou
--Elizalde Tigre

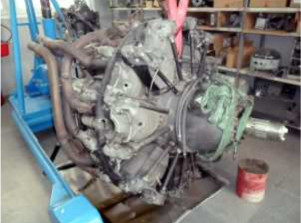

--PW R-2000 (Caribou)
--Elizalde M-21 (4)
--Allison 250
--Garrett TPE-231

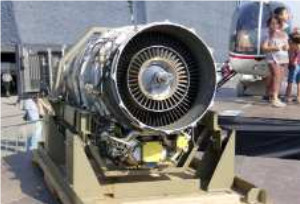

--Honeywell TFE-731
--GE Aft-Fan (+ one rotor)

-Escola “La Paperera”: (Vilanova i la G.)
--JT9D (IB)
--Garrett APU
--GE Aft-Fan (Coronado)
--Bristol Viper (x2)
--M-21 seccionado (+ one in pieces)
--Elizalde Tigre
--Lycoming Hor. Opp.

-Centre Aeri: (Vilanova i la G.)
--To be indexed during next visit.

-Escola Enginyers Aeronautics.: (Castelldefels)
--J-79

-Escola Enginyers Aeronautics.: (Terrassa)

-Ajuntament del Prat del LL.:
--JT9D (IB)

-RMV / L’Aeroteca: (Particular, BCN)
--Lycoming O-540 (x2)
--Sección Elizalde Beta (Dep. en La Sénia)
--Citroën 2CV (semi-prep.)

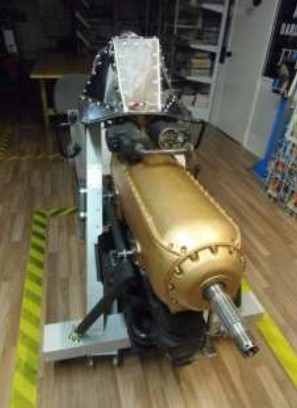

--Tigre Elizalde, demo del Centenario.

-ESA: (Particular, Vidreres, GI) (E.SAM)
--Elizalde Tigre
--Elizalde M-21

-J.M. Chicharro: (Figueres, GI)
--DH Gipsy Major (2-3)

-CIH de La Sénia.: (Tarragona)
--Section Elizalde Beta (Deposit from L'Aeroteca)
--Remainders of a DB-601 (Me-109 del Prat)
--M-62 Shvetsov

-Talleres Seravia # 1: (SBD)
--Selection of 5-6 various old engines (They disappeared while they were stored in the "compressor room").
(Ranger / Jacobs / Blackburn-Cirrus / De Havilland Six
...etc)

-Talleres de TAF.: (SBD)
-Various turbines, in turn.

-Talleres CEFAC.: (SBD y Terrassa)
--Various Lycoming y Continental in rep.

-Talleres Gavina.: (SBD)
--Piston and turbine engines in turn.

-ENMASA/Elizalde.: (San Andrés)
--Semicircle of their engine range in the lobby
(Late sixties). Missing. ¿Inta, Mae, ITP?

-Talleres Futurhangars.: (SBD)
-Piston and turbine engines in turn

-Talleres Link .: (SBD)
-Piston engines in turn

-Talleres Top-Fly.: (SBD)
-Various Lycoming/Cont. Closure.

-Talleres Tadair.: (SBD)
--Various GE  Coronado. In turn Lyc/Cont piston.
Closure.

-Talleres MC SL.: (SBD / Prat)
--Closure. (see RMV)

-DUC.: Classic aircraft and engines. (SBD)

-SUMAER.-(Manolo S. Damians. (SBD)
--Aubier-Dunne, two-cylinder (Missing).
--Radial, inline, horizontally opposed engines and documentation (Missing)
--Closure.

-ROSIQUE Aircraft. (Clasicos Rosique): (Reus/Tarragona)
--Elizalde Tigre (various)
--Elizalde M-21 (various)

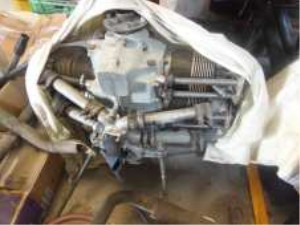

--Cont. y Lyc. various.
--2 PW Radials, etc. (from Caribou)

-ACBS.: (SBD)
--Various Cont. y Lyc., en rotación.

-AC Reus.: (Tarragona)

-AC Lleida.: (Lleida)

-AC Girona.: (Girona)
--Without activity.

-AC Ampuriabrava y Centro Paracaidismo.: (Girona)

-AC Seo d’Urgell.: (Lleida)

-AC Cerdanya.: (Lleida)

-AC Igualada.: (BCN)
--ULM engines from different brands

-Aerodrom de Manresa: (Pujol Muntalá)

-Aerodrom Bages-Manresa.: (BCN)
--Various ULM engines.
--Mosler (VW) To be installed.

-Aerodrom de Pals.: (Girona)
--Various ULM engines.

-Aerodrom de Avinyonet.: (Vilafranca P.)
--Various ULM engines.

-Fundació Elizalde.: (BCN)
--Documentación

-Fundació Hispano-Suiza.: (BCN-Peralada, GI)
--Documentation.

-EAE: (Assoc. Escuela Aprendices Elizalde)
--Documentation. (BCN)

-ADAR.: (BCN)
--Documentation.

-AEHS.: (Associació d’Estudis Histórics de l’Automoció-
Antics empleats de la HS/Pegaso/Enasa/Iveco)
--Documentation

-GTD.:(BCN)
--Ariane y Soyuz scale models (They make the real software for Ariane and Soyuz launches in Frenchy Guayana).

-AENA.: El Prat Interpretation Centre (BCN)
--Aircraft and Anzani scale models 1:1. (Dummies)

-HS-PEGASO / Iveco.: (Zona Franca, BCN)
--13 engines from HS-Pegasus-Enasa's chronological history that are considered historical heritage in Barcelona.
Several are missing, (especially the H-S 12Z-89 and a V8), which are reported.
Collection shattered.
--(Exit of Engines, Technical Media and Documentation, first to Madrid and then Salamanca City or Alba de Tormes and/or Galicia). Iveco Expolio Foundation: Delivery by delivery they should have chosen BCN, for all reasons.

-”COL.LECCIO D’ENGINYS MECANICS”.: (J.C.-
Particular, Mataró-BCN).
--More than 100 miniature industrial steam engines, boats, traction engines, public works, locomotives, etc.
(Incl. Cars and motorcycles running on benzine)
--Aviation engine scale models at 1/3, 1/4 y 1/5. And running.:
---Curtiss OX-5
---Bentley BR.2
---DB-601E
---DB-603
---RR Merlin
---DH Gipsy
---Morton radial 5
---Rotativo Gnome
---Bristol Aquila
---Radial D. Row Morton 14
---Bristol Hydra
---Rotativo Le-Rhone
---Wasp Junior
---Anzani 3 cils.
---Blackburn Cirrus
---Bristol Jaguar
--Aviation engine models at real size.:
---Le-Rhone 6 cils. para dirigibles
---Marboré II (M-21)
---Marboré II (Rojo)
---HS-V8 (Aries)
---RR Gnome
---Rotativo Clerget
---Rotativo Gnome
---Rotativo Le-Rhone
---Salmson 9 cils. peq.
---Salmson 9 cils. grande
---Anzani 6
---Praga D
---Jacobs radial
---PZL-Wright J-5
---Bristol Hercules
---Bristol Centaurus
---DH Gipsy Six
---Renault 6 cils. inv.
---Renault 4 cils. sobrealim.
---Continental IO-520
---Lycoming IO-541
---P&W R-2800
---Hermes-Cirrus
---M-21
---Enmasa/Elizalde Beta
---Elizalde Beta seccionado
---Elizalde Sirio
---Enmasa/Elizalde Sirio
---Radial 5 cils.
---Elizalde Tigre
---Elizalde M-21
---Hispano Suiza V12Y
---Hispano Suiza V12Z-89
---RR Griffon
---RR Dart
---Turbomeca Bastan
---Turbomeca Astazou (2)
---Atar 101E
---Atar 9C
---Cohete Stentor
---Phobos scale model
---Ariane 5 “Ciutat de Barcelona” scale model

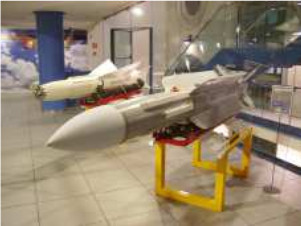

---Matras (aprox 6) Aire Superfi cie, Aire-Aire

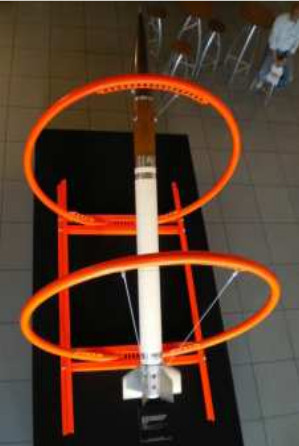

---Sonda BAJ
---Aerospatiale ANS (scale model from original)

-GARATGE TERRAMAR.-Castellbisbal.
--Wolseley V8 (?) (Hispano Suiza Lic.)

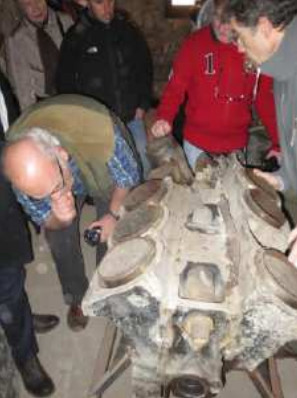

-MONGE. (Sant Pere de Arquells = Particular)
-Russian turbojet Collection.

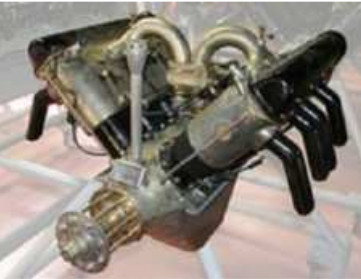

Hispano-Suiza V-8 engine
-La Sagrera factory-
-Barcelona-

At the end of 1914 they put the first pen stroke on paper on the design board for the famous V8 engine, by Swiss engineer Marc Birkigt. It did its first rotation in 1915.

-2015 is the year of CENTENARY-

(2nd Prototype 8 cylinder fins at the reserve storage in Dugny, France)

Tiger engine from Elizalde SA
-Automobile and Aviation Engine Factory
-Barcelona-

Celebrating the factory's founding centenary 1913/14-2014 when the first Type-11 car circulated through the city streets.

(Memorial display at the Aeronautic Bookshop L'Aeroteca)

Curiosity
-Former Factory employees come to see it, some of them kissed it, others say that is a "Tiger Statue" and others say, before coming to L'Aeroteca, they are going to see the "Tiger's Pantheon" ...

----------------------------------

ALBUM
FOTOGRAFICO

MNACTEC
(Terrassa)

"S.A. Nagliatti, V-5"

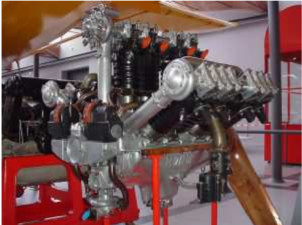

"Elizalde, Lorraine license"

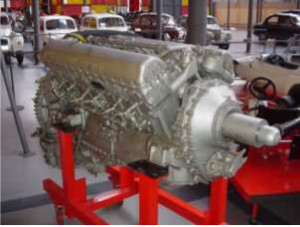

"Rolls-Royce, Merlin"

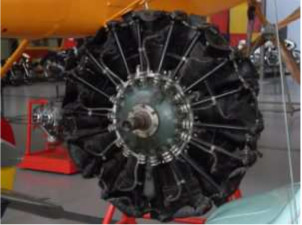

"Elizalde, Beta"

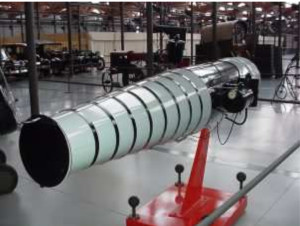

"Casanova pulsejet"

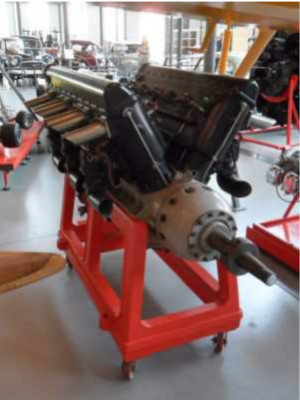

"Hispano Suiza, V-12"

"Elizalde, Sirio"

FPAC, Fund. Parc Aeronautic de Catalunya.
(SBD)

"Bristol Hercules"

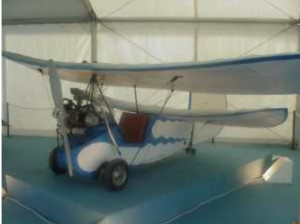

“Citroen, 2CV” (instead of Aubier Dunné)

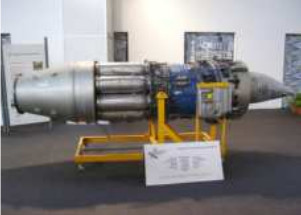

“General Electric J-47”

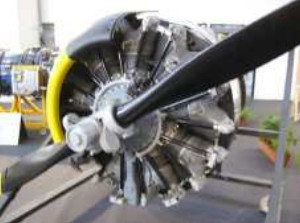

"Pratt & Whitney, R-1340"

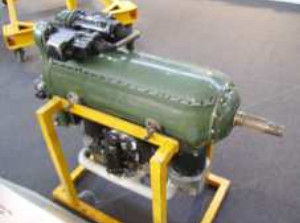

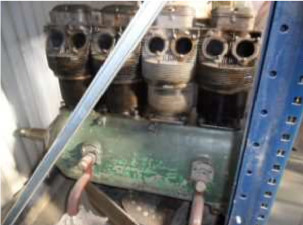

“Three Elizalde Tigres”

“Three more Tigres”

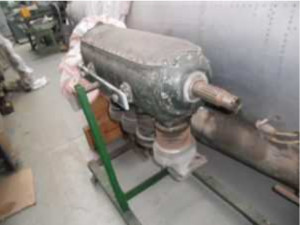

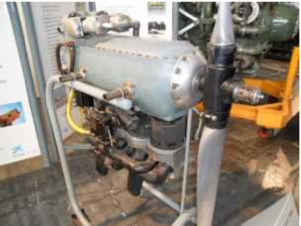

“And another Tigre -acrobatic-”

(Belongs to the C-47 whose cockpit is exhibited at L’Aeroteca)

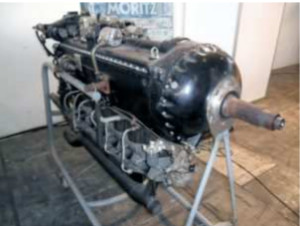

"DH Gipsy Six"

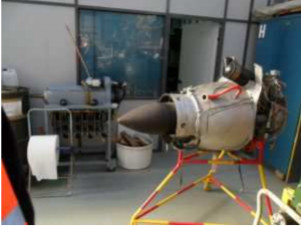

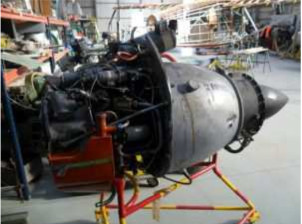

"Elizalde M-21 -Marboré II-"

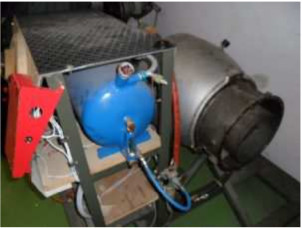

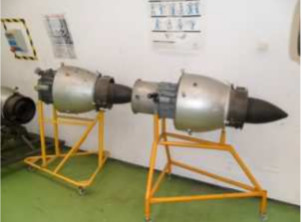

"Two more Elizalde M-21"

"A M-21 with a Tigre on the background"

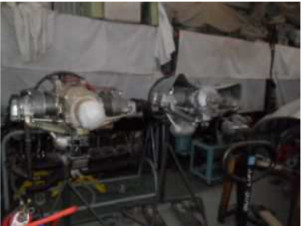

"Two-Continental A-65 row"

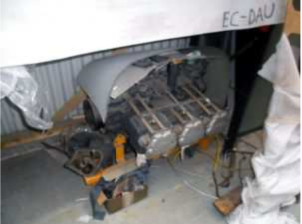

"Lycoming GSIO-480"

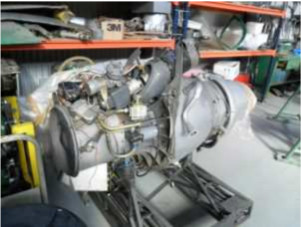

"A more complete M-21"

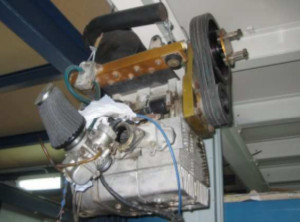

“Two ULM: Rotax y Cuyuna“

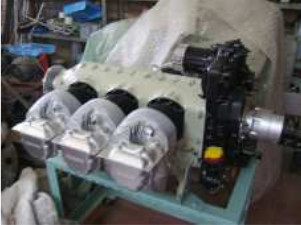

"Mentor Continental"

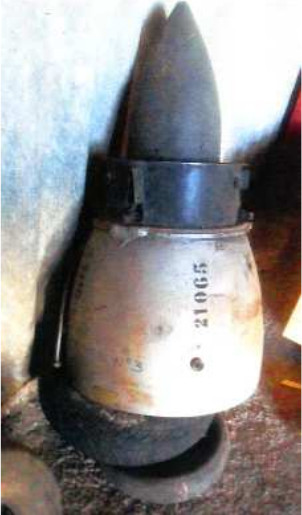

"Elizalde M-21, mutilated"

RMV / L’Aeroteca
(BCN)

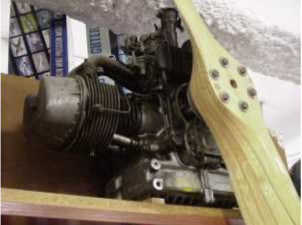

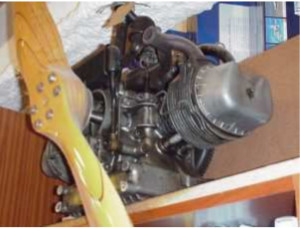

“Citroën 2 CV, half aicraft-adapted”

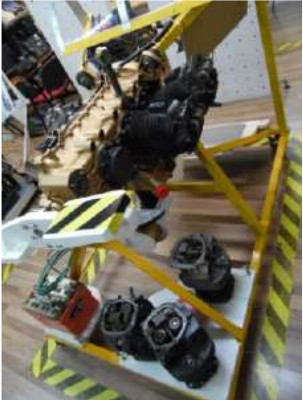

"Lycoming O-540, from his EC-FIP"

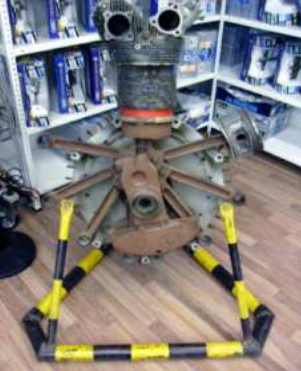

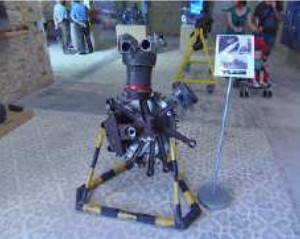

"Sectionized Elizalde Beta (Deposit at La Sénia)"

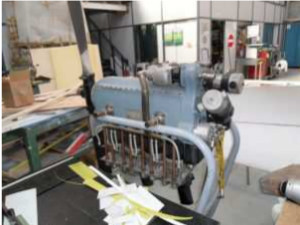

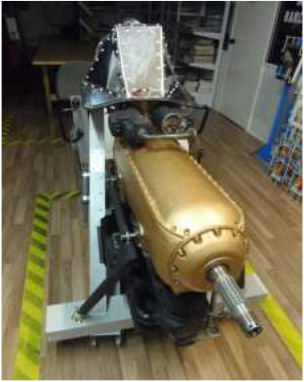

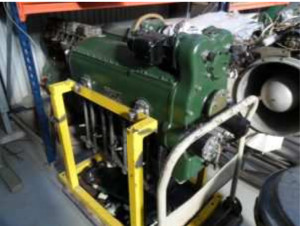

"Elizalde Tigre G-IV"

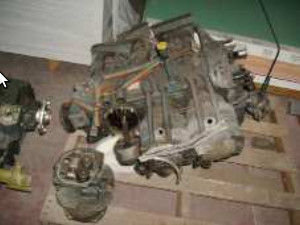

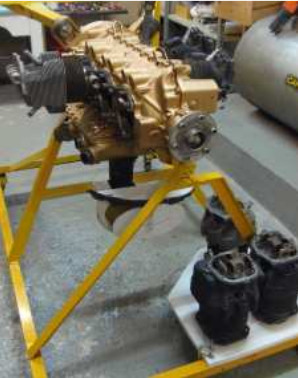

“Motor Lycoming O-540”

LA PAPERERA
(Vilanova i la G.)

"Coronado GE, Aft-Fan"

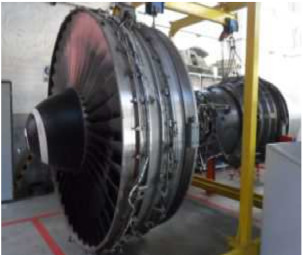

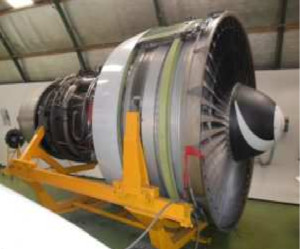

“JT9D”

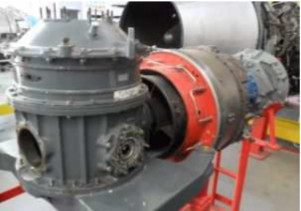

"Lycoming T-53 and gear"

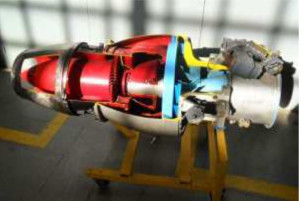

"Elizalde M-21, well sectionized + another one broken up on the shelves"

"Two AS Viper"

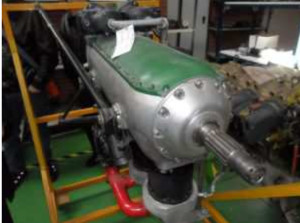

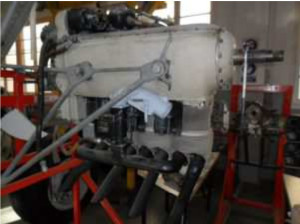

"Elizalde Tigre"

"APP de Garrett"

“Elizalde Tigre” (see above)

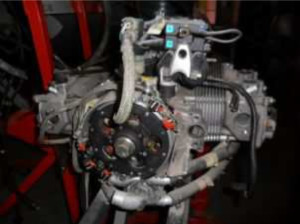

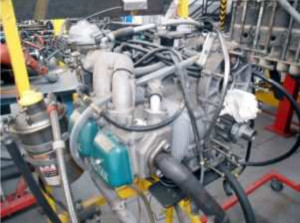

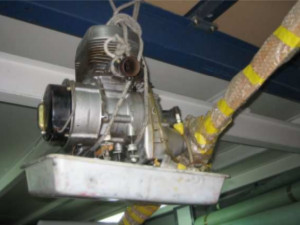

"Rotax serie 900"

Escuela de Ing. Aeronauticos.:
(Terrassa)

Escuela de Ing. Aeronauticos.:
(Castelldefels)

"J-79 from a Phantom"

H-S-Pegaso / Iveco.
(Zona Franca -BCN)

"MISSING aircraft engine at end of 2010"

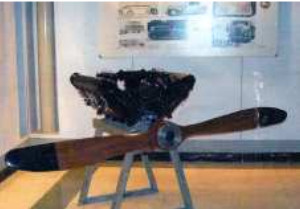

"H-S V8 in the lobby of IVECO in Barajas.
Engine made in BCN"

Aerodromo de Bages/Manresa
(BCN)

"Mosler-HAPI, prior to installation"

CIH de La Sénia
(Tarragona)

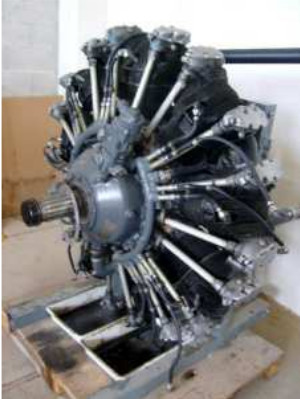

“M-62”

"Sectionized Elizalde Beta” (Deposit from L'Aeroteca)

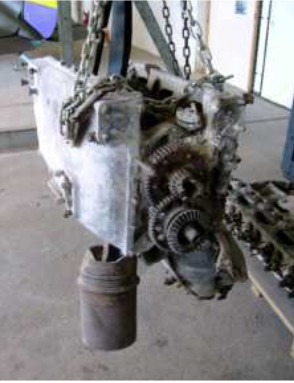

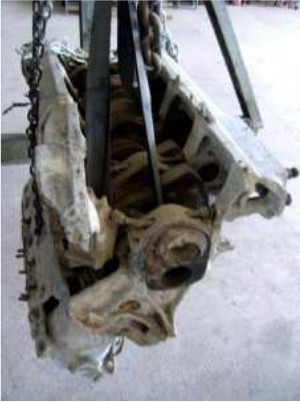

“Remainders of a DB-600” (Me-109 from El Prat)

AENA
(Aeropuerto del Prat) (PAC)

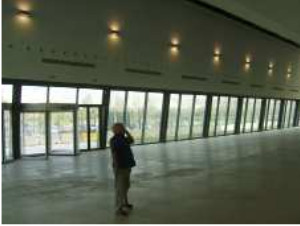

"Airport Interpretation Center"

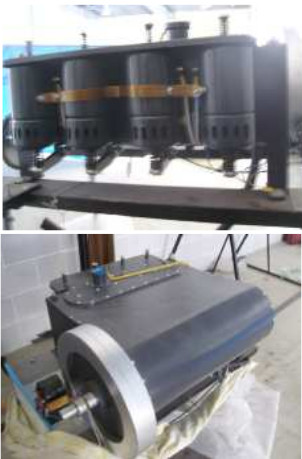

"Scale model of the Flyer's engine"

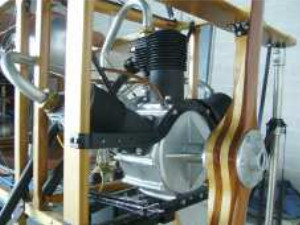

"Scale model of Mamet's Bleriot"

Col.lecció de “Enginys Mecanics” Josep
Castellsaguer
(Mataró-BCN)

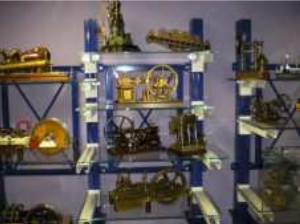

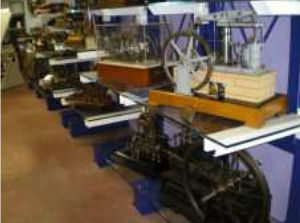

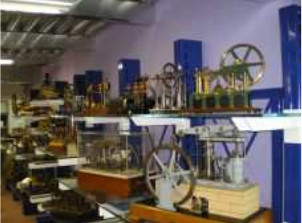

“Part of the Industrial Steam section"

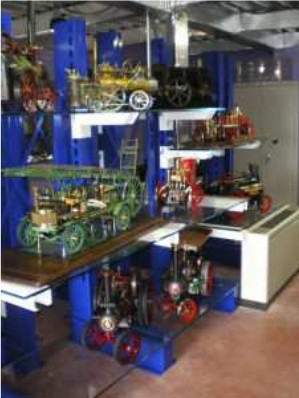

"Traction engine and steam-roller section"

"Part of the railway section"

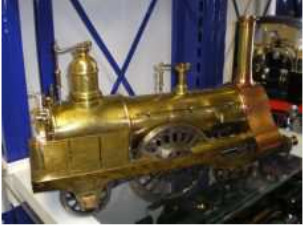

"Model of the original ‘Mataró’"

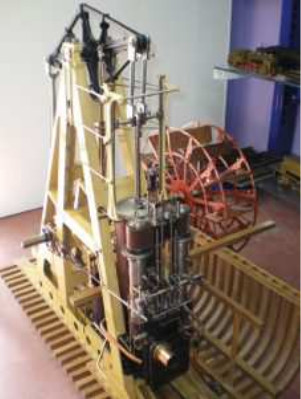

"Steam engine from a Hudson River Show-Boat"

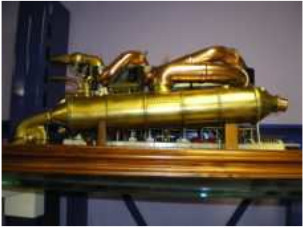

"Steam engine of an English destroyer from WWI"

"Triple action Compound"

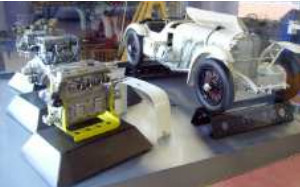

"Part of the automotive section"

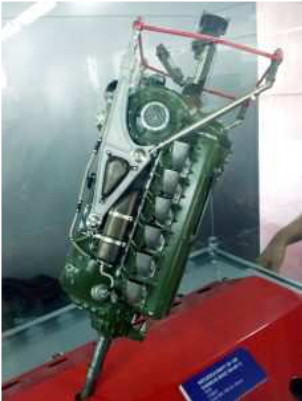

"DB-601E miniature with cannon"

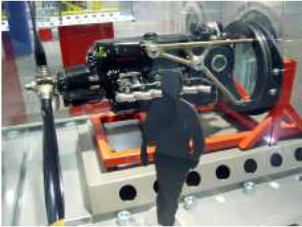

"DB-603 miniature"

"RR-Merlin miniature"

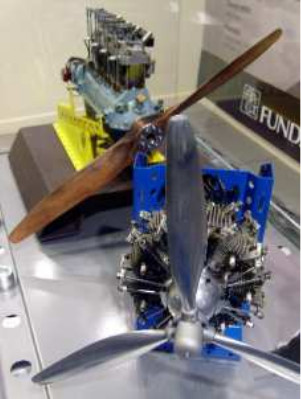

"Gipsy-I and Morton-14 miniatures"

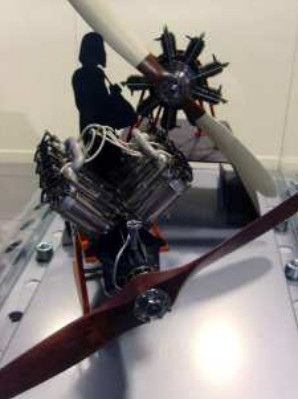

"Gnome and OX-5 miniatures"

"Bristol Aquila miniature"

"Bristol Jaguar miniature"

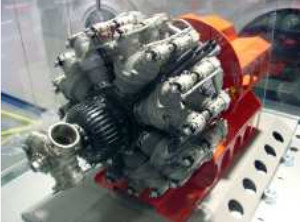

"Bristol Hydra miniature"

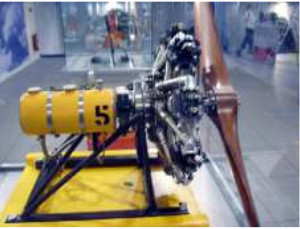

"Bentley BR.2 miniature"

"Le-Rhone miniature"

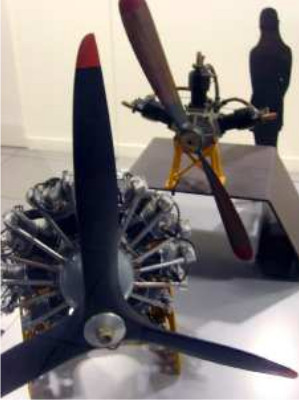

"Anzani and Wasp-Junior miniatures"

"Blackburn Cirrus miniature"

-Miniaturas a 1/4 y 1/5-

Author's note: All miniature engines run on gas or gasoline. They were showed for the first time in 2003 (anniversary of the Flyer's first controlled flight) when they held an exhibition at Caixa Laietana's Cultural Center in Mataro.

-A second presentation was made at the 2005 Forum in Barcelona. Miniatures and real engines were exhibited.

-The third one at the Caixa Laietana's new Cultural Center in 2010-11. Both groups, miniatures and real engines, were exposed.

-Another exhibition where miniatures were showed, was held at the Safran Museum in Villaroche (France) in October 2011.

"Mataró 2010-11"

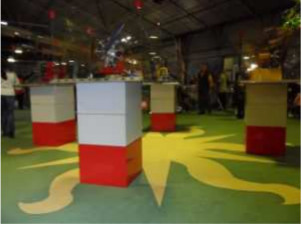

"View of the Safran in 2011"

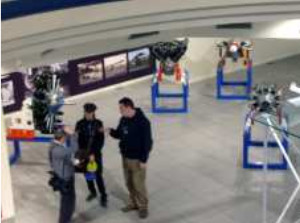

"Part of a hall at the Caixa Layetana's Cultural Center in
2010-11 with real engines"

-The main attraction of Joseph Castellsaguer's "Col.lecció d’Enginys Mecanics" is a number of real engines, some of them in perfect condition and others in the reserve storage.

-Some of them we can see below:

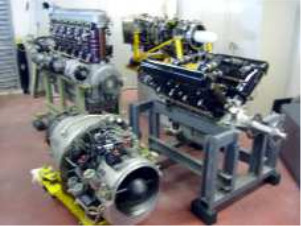

"Groupe of Renault, Gnome, Marboré II y H-S
V-8"

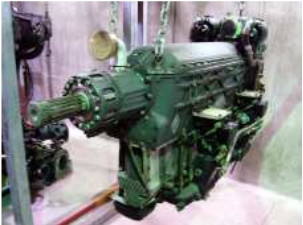

"Renault for airships"

“Hispano-Suiza V-8” (Aries)

"Gnome from DH/Bristol/RR"

"Turbomeca Marboré II"

"Another Marboré"

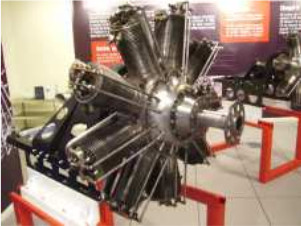

"Clerget rotary"

"Le-Rhone rotary"

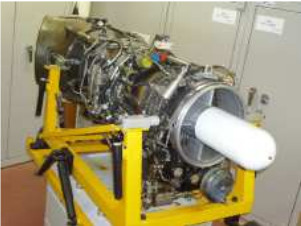

"Gnome-Rhone rotary"

"Salmson"

"Anzani 6"

"Praga D"

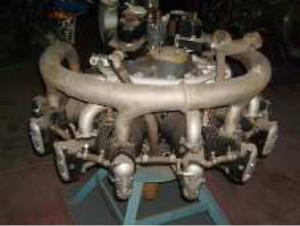

"Jacobs"

"PZL-Wright J-5"

"Bristol Hercules"

"Bristol Centaurus"

"DH Gipsy Six"

"Renault"

"Continental IO-520"

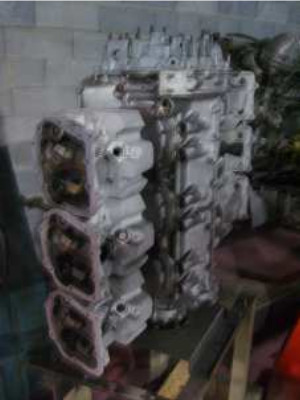

"Lycoming IO-541"

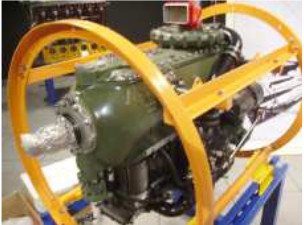

"Supercharged Renault"

“P&W R-2800” (LH)

"Hermes-Cirrus"

"M-21"

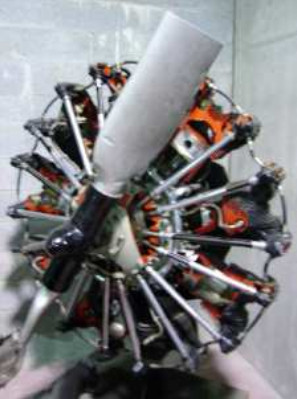

"Sectionized Elizalde Beta"

"Elizalde-Enma Beta, complete"

“Two Elizalde Sirios”

(Picture not available)


Not confirmed “Elizalde Tigre”

(Picture not available)


Not confirmed “Elizalde M-21”

"5-cylinder radial, Lambert"

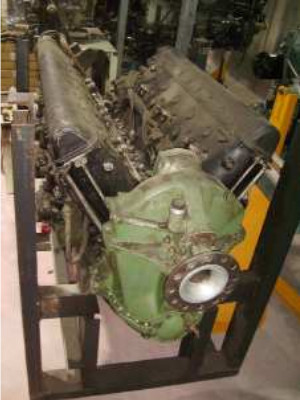

"Hispano-Suiza V-12Y"

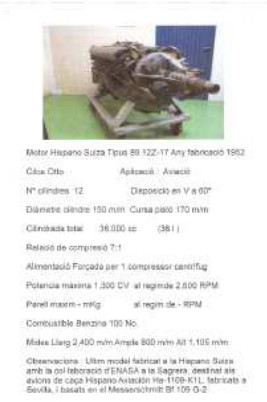

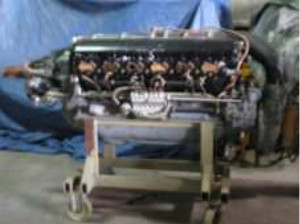

"Hispano-Suiza V-12Z-89"

"RR-Griffon"

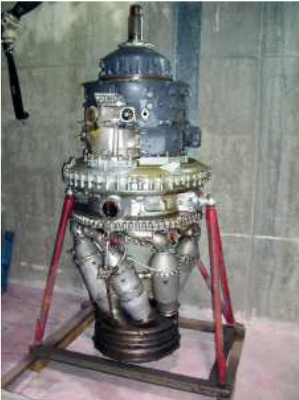

"RR-Dart"

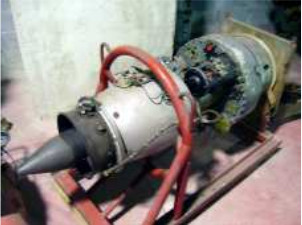

"Turbomeca Bastan"

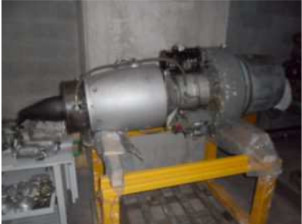

“Turbomecas Astazou”

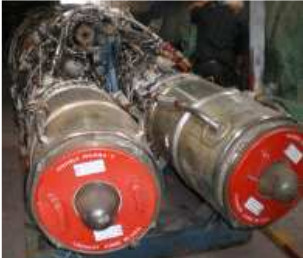

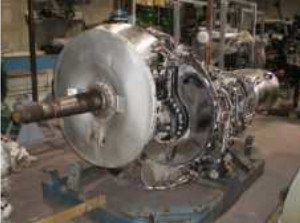

“Double-Mamba”

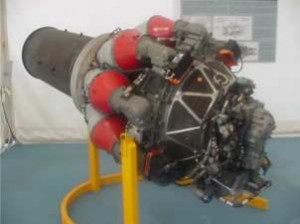

"Hispano-Suiza 105"

"Atar 101E"

"Atar 9C"

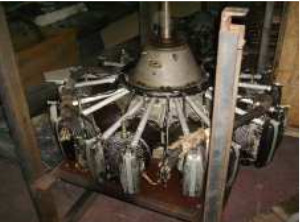

"Salmson radial"

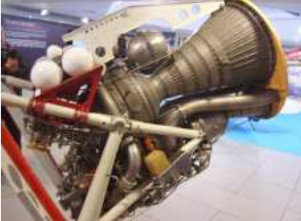

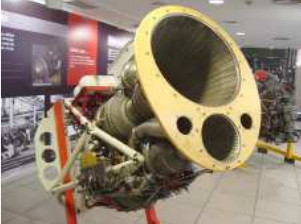

"Bristol Stentor"

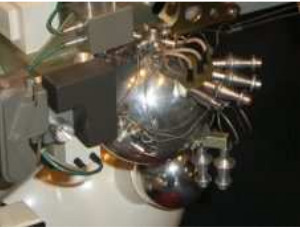

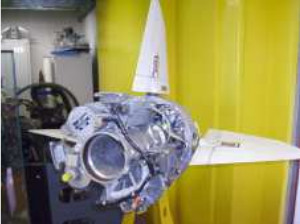

"Maneouvring engines from Phobos, model"

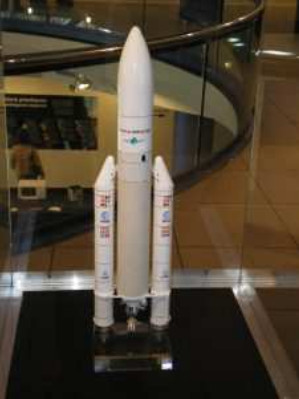

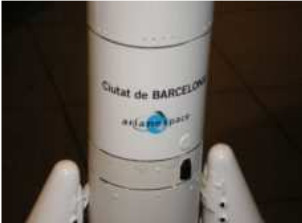

"Ariane 5, ‘Ciutat de Barcelona’"

"Noelle 60 Starter"

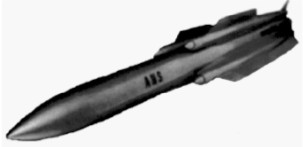

"Original ANS scale model"

"Space for missile engine and rudder"

"Matra missiles"

“The same as above”

"BAJ sounding rocket"

"Matras for exchanges"

Very Important Note: Due to the prolonged "economic-confidence" crisis and also to the lack of local stimulation to do something important with this "Enginys mecanics" collection in Mataro, the owner is starting to dismantle it. There is a shortage of very interesting proposals.

-Hopelessness has come very significantly because of lack of interest from the local council that, disposing of several magnificent empty outbuildings, for a more or less justified fear, does not allow their use for a temporary or permanent exhibition of this irreplaceable material. I know that J. Castellsaguer has no economic or any other kind of interest in this proposal.

-'A big shame. We'll have to go to Turkey or Australia to see these aircraft engines again. We still have the consolation of seeing the pictures in this chapter of my A-Z edition.

-Note written in the 4th quarter of 2013.

**************

-During the "Festa del Cel" (Sky festival) on September 28th 2014 that was held on a rainy day in Mataro (BCN) Mr. J.C. has had an exhibition at the City's Cultural Center "Can Marfat" The exhibition occupied an entire floor, still with a great part of his material. Thank goodness, congratulations!!

**************

Escuela “Illa de Banyuls”
(Prat del LL.)

"JT9-D"

"P&W, R-2000"

"Rotax 912"

"Elizalde Tigre"

"P&W, from DHC Caribou"

"GE, Aft-Fan"

"Honeywell TFE-731"

"Honeywell"

"Garrett/AiResearch TPE-231"

"Lycoming on a bench"

"The same Lycoming with Cub propeller at the Forum"

"Selection of Lycomings for practicing"

"Turbomeca Astazou"

"Elizalde M-21"

"Two Elizalde M-21s"

"M-21 for starting practices"

"Allison 250"

“Rotor, chambers and after-fan GE”

"JT9D from the El Prat municipality"

"Turbomeca Marboré II, sectionized"

MNACTEC. Museu-Claret
(Girona)

"Remains of a Bristol Pegasus rescued from the sea"

"AVIA-Hispano-Suiza -or M-100-, 12 V"

GARATGE TERRAMAR
Castellbisbal (BCN)

"V-8 -Maybe it is not a Wolseley-"

COLECCION PRIVADA X. MONGE
Sant Pere dels Arquells (Lleida)

"Shvetsov Sh-62"

"Klimov VK-1"

"Remains of a Junkers Jumo 211"

Colecció Tallers XXXXX
(Girona)

--VK-1 complete with nozzle
--AI-14 Shvetsov

Colecció privada (Private collection) de ESA
(Vidreres)

"Elizalde M-21"

(Picture to be found)


and
“Elizalde Tigre”

ROSIQUE AIRCRAFT (CLASSICS)

“Two Pratt & Whitney from Caribou”

"Continental C-90"

“Another Continental C-90”

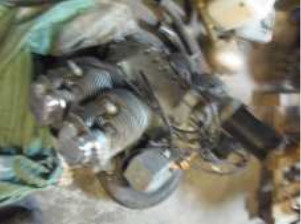

“And another Continental C-90”

"Elizalde Tigre IV"
