Updated: 28-Apr-2020
Engines from 1949 built by Marcel Echard (Moteurs Lutetia), specialized in 2-stroke.
-His 4.C.02 model was tested on a Baby-Jodel. They were air-cooled V-engines.

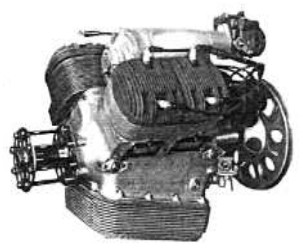

“Lutetia 4V”
-It had 4 cylinders in V, double ignition and 1,267 cc of displacement. At the rear it had a supercharger.
-It had a manual starter, and gave 45 CV at 2,800 rpm.
ç
"Lutetia ad”

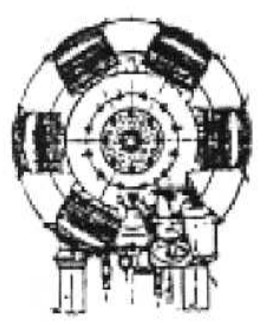

“Lutetia radial engine”
They also built a 2-stroke, 6-cylinder, radial engine with two rows of double cylinders.
-It therefore had 12 cylinders.
-In some publications it is mentioned as a 6-cylinder engine.
“Lutetia radial side view”
-The carburetor is below the front, where there is a compressor.
-The engine has double ignition it and occurs in the two twin chambers at the same time.
-The given power was 70 CV at 2,600 rpm.
Engines of LUTETIA
Model: 4.C.02, V4
Arquitecture: 2-stroke4-cylinder V-Engine
Cooling: Air
Total Displacement: 1267 cc
Bore / Stroke:
Power: 45 CV @ 2800 rpm
Weight:
"Lutetia 4V"
Model: 6 cyl. radial
Arquitecture: 2-stroke12-cylinder Radial
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 70 CV @ 2600 rpm
Weight:
6 double cylinders (12 cylinders)
"Lutetia radial"
