The Laurin & Klement car factory built the engines designed by Hiero (the well-known Austro-Hungara brand).

-The Hiero engines were designed by the well-known sportsman and car racer Otto Hieronimus.

-The engines were also known as Hieronimus.

From Appendix 9: From the important contribution of E-V (AEHS) an interesting engine of the aforementioned brand but which is provided as “Larin-Klament” that the author reads for the first time. It is an engine built by this brand licensed by Hiero.

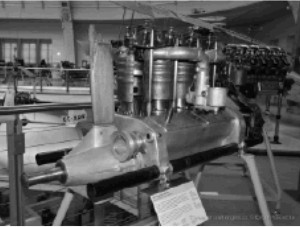

"The 55 hp Laurin und Klement"

-Two things attract attention, a wooden mast in an upright position at the front of the propeller outlet. Another is that the engine is mounted on a bed of two rigid tubes without any damping, which would transmit the vibrations to the entire structure.

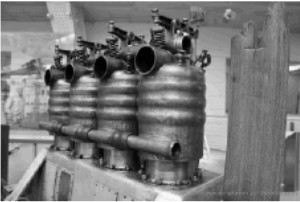

“Four cylinders and the wooden mast on the right”

-The wooden mast is mysterious. It is a pending investigation by the author, but I would appreciate the solution if someone knows the reason.

-The cylinder sleeves are not made of red copper but of yellow brass, which gives it a unique appearance. The cylinders have a tap at the top, perhaps to prime the water circuit.

“The wooden-mast fitting”

“Laurin und Klement logo”

From Appendix 12: In addition to the upright inline cylinder engines, it also made the the famous 12 Eb W-engine from Lorraine-Dietrich that gave 450 CV.

-We also provide the brand logo in color. Courtesy E-V of EAHS.

“Laurin Und Klement log in color”

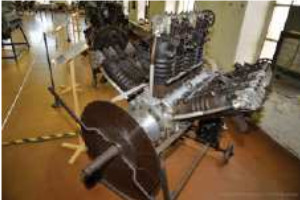

“The 12Eb of Lorraine-Dietrich made with license”

“L&K 12Eb engine plate with the Cross of Lorraine”
