This is the Lambert Engine and Machine Co., which in 1929 acquired the Aircraft Division of the Velie Motor Company.

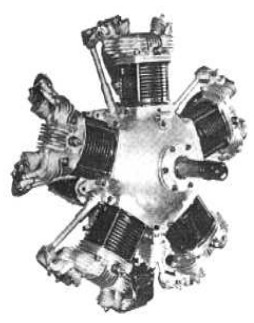

Lambert R-266 radial engine
“Lambert R-266”

-The radial “Major Lambert” 5-cylinder model gave 85/90 hp at 2,375 rpm, with 266 cubic inches of displacement (some documentation mentions 226 cubic inches). It was an air-cooled engine.

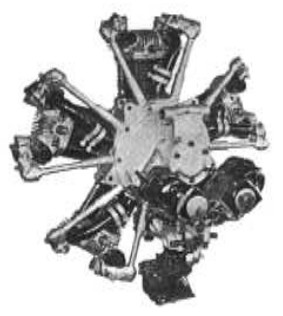

Lambert engine, rear view
“Lambert, rear view”

-The R-266 - its official name - was installed on the “Monocoupe 90”, for example.

-The Lambert Engine Corp. was based in Moline, IL.

-Now we mention an experimental Lambert, a horizontally-opposed, two-cylinder engine that used the R-266 cylinders.

-It was the H-106 that gave 35 hp at 2,500 rpm. The year was 1930. We have no further information.

-In the USNA Registry of Records there are entries between 1930 and 1942 about two Lambert engines, the R-270 and the YR-270.

-The Lambert Aircraft Engine Corp. was the successor of the Lambert Engine and Machine Company from 1936.

-It seems that it received the Velie Motors Corp. (see) which had already begun to build the M5 engine.

-Curiously, these engines are very similar to the Detroit Aircat, in its turn to Leblond (see) (Le Blond sometimes) which caused legal litigation.

-The M-5 started in Lambert-Velie with 45 hp going up to 55 hp and shortly thereafter it gave 65 hp at 1,900 rpm.

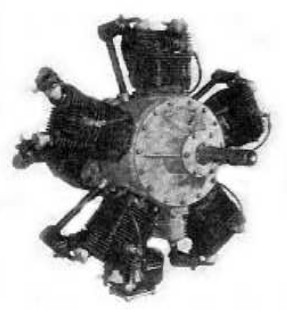

Motor Lambert-Velie M-5
“Lambert-Velie M-5”

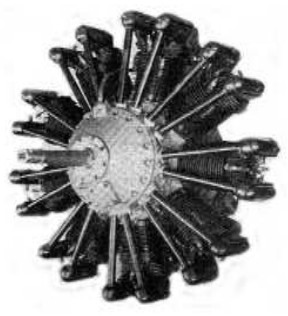

Motor Lambert-Velie L-9
“Lambert-Velie L-9”

-The Lambert-Velie L-9 is more known as Velie L-9 since it was at Velie Motors Corp where it was first designed and built in 1928.

-It had 644 cu. in. of displacement and gave 180 hp at 1,900 rpm.

-The Lambert 90 engine was a development of the M-5 with notable differences, with 90 hp at 2,375 rpm. It was also known as R-266.

Motor Lambert 90
“Lambert 90”

Lambert 90 engine (R-266)
“Also known as R-266”

Engines of LAMBERT (USA)

Model: H-106 (experimental)

Arquitecture: 2-cylinder Horizontally opposed
Cooling:
Total Displacement:
Bore / Stroke:
Power: 35 HP @ 2500 rpm
Weight:

Other details:
Model: L-9 (Lambert-Velie)

Arquitecture: 9-cylinder Radial
Cooling:
Total Displacement: 644 cu. in.
Bore / Stroke:
Power: 180 HP @ 1900 rpm
Weight:

Other details:
Lambert-Velie L-9

"Lambert-Velie L-9"

Model: M-5 (Lambert-Velie)

Arquitecture: 5-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 65 HP @ 1900 rpm
Weight:

Other details:
Lambert-Velie M-5

"Lambert-Velie M-5"

Model: M-5 up-rated

Arquitecture: 5-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:
Model: R-266

Arquitecture: 5-cylinder Radial
Cooling: Air
Total Displacement: 266 cu. in.
Bore / Stroke:
Power: 90 HP @ 2375 rpm
Weight:

Other details:
Lambert 90

"Lambert 90"
