These are the initials of Hindustan Aeronautics Ltd. with a factory in Bangalore.  HAL recently manufactured Turbomeca and Rolls-Royce engines under license. From the former they made the Adour, Astazou and Artouste and from the latter, the Orpheus 70 and Dart 536-2T.

-At the factory in Koraput, they made the Tumanskii R-11, R-13, R-25 (for the MiG 21 bis), the R-29B (for the MiG 27M) and the TRD MK R37F, with afterburner.

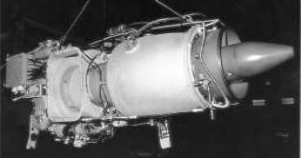

“HAL-Astazou”

-HAL has an important tradition of manufacturing engines.

-The well-known HF-24 aircraft was tested with an Orpheus of Bristol-Siddeley that was together with Snecma in a joint venture later. For this airplane's mass production the Brander engine was planned, but eventually they mounted Klimov's VK-7 with 3,040 Kgf of thrust.

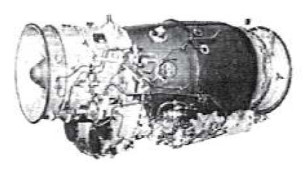

“HAL-Adour”

-In collaboration with Turbomeca, the "Shakti" engine is made, which in reality is an Ardiden 1H according to Turbomeca.

-The collaboration of both companies goes back to the years 1960-61 when they built the Artouste.

-They began building the Shakti towards 1999 to repower the Dhruv helicopters that use the TM-332, (version 2B2). And for new Dhruvs.

“HAL-Turbomeca Shakti”

-HAL also manufactured horizontally-opposed, 4-cylinder piston engines like the PE-90H. This was in 1959, and it was the first engine designed and built in India. There also was the PE-100 that gave 100 hp.

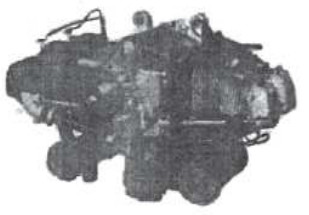

“HAL-PE-90H”

-The HPE-2 model had 6 horizontally-opposed cylinders, and delivered 185/250 HP of power. They were made with the intention to be used on agricultural aircraft. The HPE-4 had 8 cylinders and gave 400 hp.

-Apart from the aforementioned engines that were built under license, the HAL HJE-2500 turbojet engine was prepared for the Kiran training aircraft, at the Bangalore factory.

-A single shaft engine with a 7-stage axial compressor driven by a single-stage turbine. Its first flight was made in 1966. Precisely the engines that were manufactured under license put this engine away.

“HAL-PTAE-7”

Another HAL engine was the small PTAE-7 jet with only 350 Kgf of thrust.  It was built for vehicles without pilot, RPV, totally expendable, so they were short-life engines.

-These engines were used by target drones, although the first tests devices used the Microturbo TRI-60, the PTAE-7 was used for mass production.

From Appendix 6: HAL's Motor Division in Koraput has built an important range of engines, but what is interesting, is that they have been licensed both from the west and from Russia.

-Going over it again, we have the AL-31FP for the 4th-generation Sukoi-30.

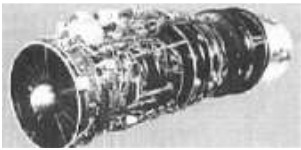

“AL-31 FP”

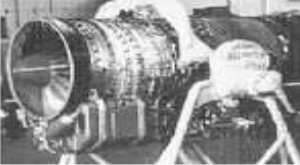

“The R-25 for the Mig-21 bis”

“The R29B for the Mig-27M”

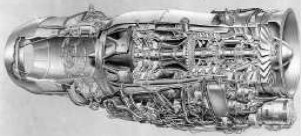

“The Turbomeca-RR Adour”

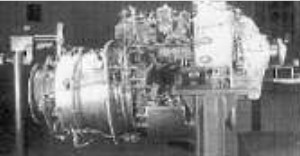

“Garrett 331-5”

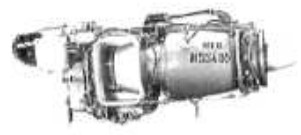

“Artouste IIIB”

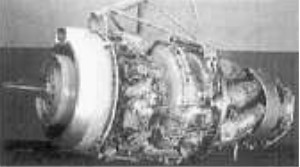

“Dart in 533 and 536 versions”

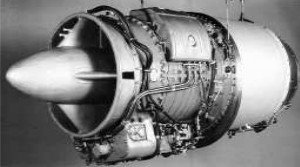

“Orpheus 70105”

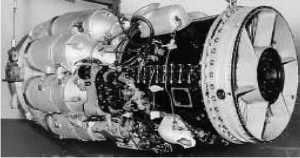

“RR Avon”

“Gnome 1400 IT”

“HAL logo”

-This company from Bangalore, is the Hindustan Aeronautics Limited.

-It was founded in 1940 for the construction and maintenance of WWII aircraft.

-After independence it was acquired by the Indian government. In 1960, the Motor Division started, and began with building the Adour Mk811, the Garrett TPE331 and the Artouste IIIB turboshaft.

“HAL/Adour”

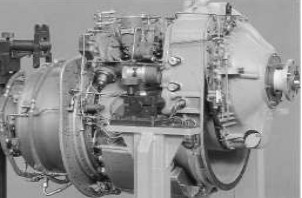

“HAL/Garrett”

“HAL/Artouste”

-HAL also built the liquid propellant rocket engines of the Defense Research and Development Laboratory (DRDL) for the Prithvi indigenous missile.

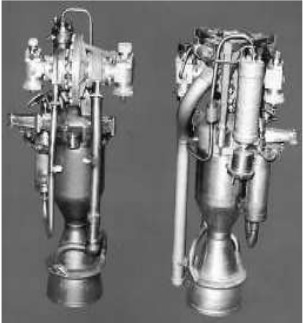

“The rocket engine with 3,000 Kgf of thrust”

-Around 1979, they began manufacturing the Turbomeca TM333B with 850/950 SHP  for a military helicopter.

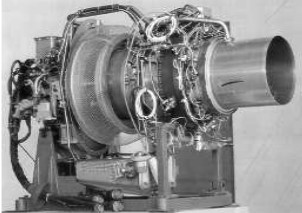

“TM333B engine”

-HAL also has a great capacity to carry out checks, overhaul and maintenance of all types of aircraft engines.

-They serviced the Adour MK804, the Dart 533 and 536 on the HS-748 aircraft, the Orpheus 70105 on the Kiran aircraft, the Gnome 1400 on the Seaking, the Avon on the Indian Canberras, the Allison 501K and LM2500.

“Adour”

“Dart”

“Orpheus”

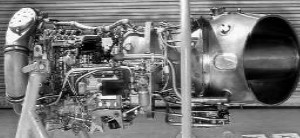

“Gnome”

“Avon”

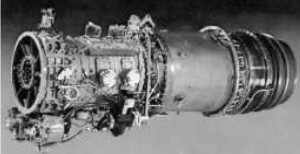

“Allison”

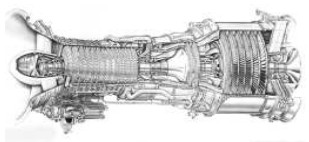

“LM 2500”

From Appendix 9: Among the rocket engines they manufactured the: Prithvi.

From Appendix 10: In 2016, HAL presented a new turbofan engine with reference HTFE-25 (Hindustan Turbo Fan Engine)

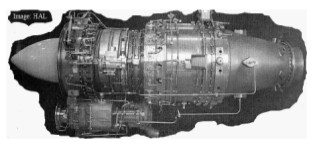

“HAL HTFE-25”

-Designed for advanced and intermediate training aircraft, as well as business jets (executive jets).

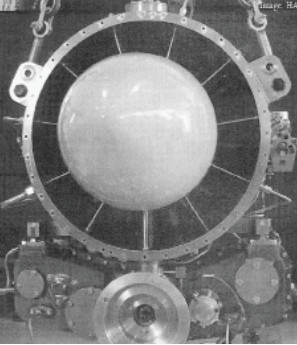

“HTFE-25 front view”

-Under the engine there is the "banana" or accessory box.

-At the time of this presentation, the turbo shaft HTSE-1200 has also been built for use on helicopters of up to 3.5 tons in of "single engine" configuration, and from 5 to 8 tons on twin-engine configuration.

-With 1.200 Kw of power it can run up to an altitude of 7,000 meters.

-They were designed and developed at HAL's AERDC. This is the "Aero Engine Research & Design Center".
