AVIA Poland is easy to confuse with AVIA Czechoslovakia, which is a Skoda division.

-From the person in charge of the engine section at the Krakowie Museum, Piotr Lepalewski, the author has received additional information, which he considers of interest, and adds below.

"Polish AVIA logo"

-AVIA Poland has a different production line. If we make an index, we find the following:

-1924/29, the WZ-7 radial engine.

-1930, the WZ-100.

-1931/32, The Lorraine Dietrich LD-12Ed and 12b.

-1933, the Whirlwind J5B.

-1934, the P-4.

-1936, the “3” engine.

-1938, the Delfin 3T (Wright) and the G-R 7 (Mars 7) as the Mew.

-The company's main engineer was Wl. Zalewski, hence the WZ engines.

-He was trained between 1923 and 1926 at the School of Mechanics. In fact, in 1926, he designed the WZ-X1. He is awarded the WZ-18.

-And at the Technical Museum in Warsaw are other engines from this engineer. The X1 was called "Kogutek".

-Later XIIb became the "Kogutek II". Other exposed engines are the WZ-20, the WZ-25 and the WZ-40 (5-cylinder).

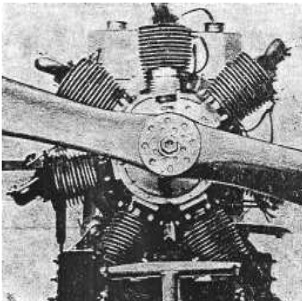

"Avia WZ-7"

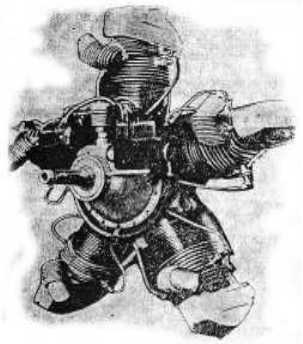

"WZ-100"

-The WZ-100 on behalf of the engineer Wl. Zalewskiego (Zalewski) was a 5-cylinder engine that gave 100 CV at 1,850 rpm and 85 CV at cruise speed.

"Avia P-4"

-The Avia P-4 gave 100 CV at 1,900 rpm and was designed by F. Peter in 1930.

-The Avia 3 was a joined design from F. Peter and Wicktor Narkiewicz (see). It is an inverted, four-cylinder, inline engine that was air cooled and gave 63 CV at 2,400 rpm.

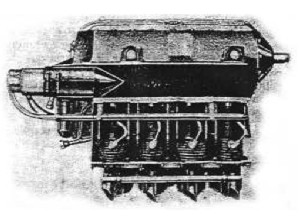

"Avia 3"

-The other engine that is atributed to Avia is the Delfin 3T, which is from 1939, and which design is from A. Tupalski. It gave 280 CV at 2,300 rpm.

"Avia 3, viewed from the other side"

-Observe the long tube that passes outside the cylinders to drain the oil from the front.
