Tips & Smith Inc. of Houston, Texas acquired war surplus Le Rhone engines and converted them from rotary to fixed.

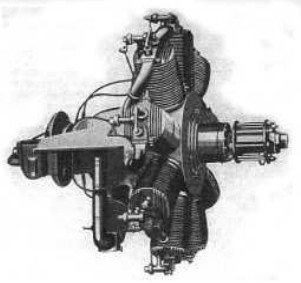

“Super - Rhone”
-The conversion was carried out by Charles E. Quick, so the crankshaft was moved to the front and made shorter since it was no longer a means of attachment to the aircraft structure.
-The engine delivered 120 HP at 1,400 rpm. All the fuel supply and lubrication had to be redesigned.
Engines of SUPER - RHONE
Model: Transformed Le-Rhone engines
Arquitecture: Cooling: Total Displacement: Bore / Stroke: x Power: Weight:
Other details:
The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.
To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.
A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.
The design is from Juan Soler, Sant Cugat, Barcelona
Below we show a flash of version 3
Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
