Rotron manufactures engines used in ParaJet powered paragliders. See Parajet for Volution paraglider models with Parajet engines.

-But for Parajet's Cyclone model paragliders, the Rotron Wankel-type engines appear.

“Rotron logo with the Wankel-type piston”

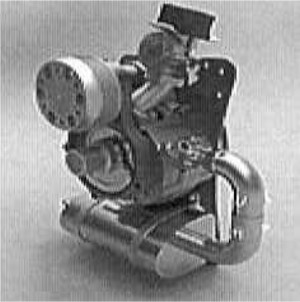

“Rotron 160 cc (pusher)”

-The Rotron 160 cc gives 25 HP at 9,600 rpm and it weighs 16.9 kg. It is a liquid cooled engine with a coolant weight of 1 kg. Equivalent thrust of 72 Kg with a 122 cm propeller. diameter.

-The second Rotron model is the 294 cc (pusher as well) with a similar architecture but giving 40 HP at 7,800 rpm.

“The 294 cc Rotron engine”

-Precisely the 294cc was installed on a Parajet Cyclone with a 5-blade propeller. This parajet flew over the summit of Mount Everest in 2007.

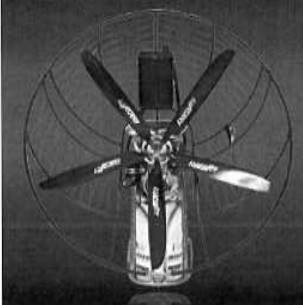

“The Cyclone with a Rotron engine”

From Appendix 9: The production of this brand, also known as Rotron Aero, of small engines for UAVs for military and civil use continues.

-The installation can be done as a Puller or Pusher.

-The new 200efi and 300efi models are similar, with the latter having a larger size, with the same appearance, like the 300rpc.

“Rotron 200efi and 300 efi”

“Rotron 300rpc”

-Although there are similarities, there are differences, for example the letters “rpc” indicate “Rotron pressurized cooling”.

-“Efi” refers to the standard “fuel injection” system.

From Appendix 10: Rotron low power rotary piston engines (Wankel type) for unmanned vehicle UAV, etc.

-The NWUAW adapts and uses them. Singularly the 300LCR and HFE and the 600LCR and HFE models.

“A 300 series rotary”

-HFE indicates “Heavy Fuel Engine” engine.

From Appendix 12: Some new models of this brand that have appeared. The RT-172tde is a classic piston.

-"Tde" is short-live, 10-50 Hrs, for target aircraft, etc.

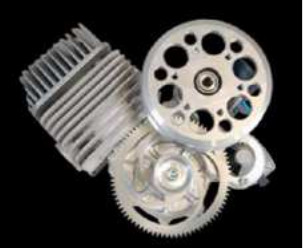

“Rotron, 172 cc”

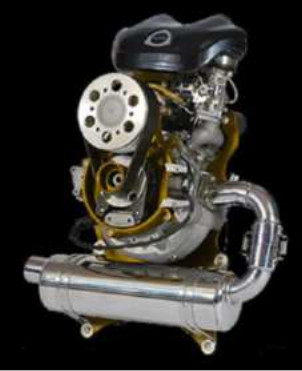

“RT-300tde rotary, short life”

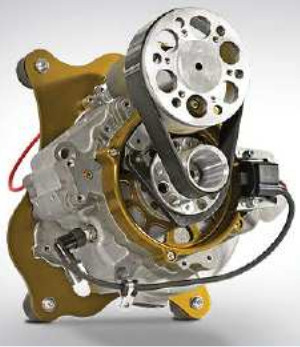

“Another Short-Life version of a Rotron rotary”

“RT-300 HFE”

-1 rotor, 31 HP at 7500 rpm. With JP-5, Jet A-1 and JP-8

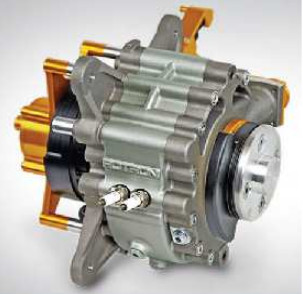

“RT-300 LCR”

-1 rotor, 32 HP at 7,500. With gasoline. 300cc displacement.

“RT-600 HFE”

-2 rotors, with 56 HP at 7,500 rpm. It runs on heavy fuel HFE (Heavy Fuel Engine), JP-5, JP-8 and Jet A-1.

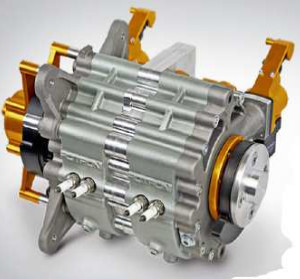

“RT-600 LCR”

-2 rotors, with 56 HP at 7,500 rpm. It runs on gasoline.

-Rotron build new engines like the following:

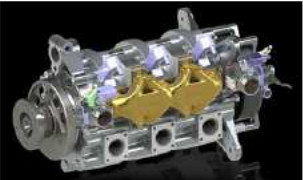

“3-body Rotron”

-The TDE versions are short life (Short Life) indicated for target aircraft and drones. From 10 to 50 hours of life, depending on the application.

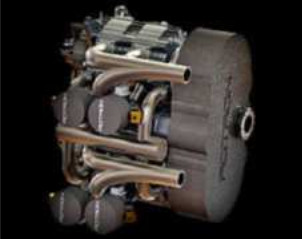

“Rotron double superimposed engine”
