Barrel engine with cylinders on both sides of the inclined plate but with the pistons joined.

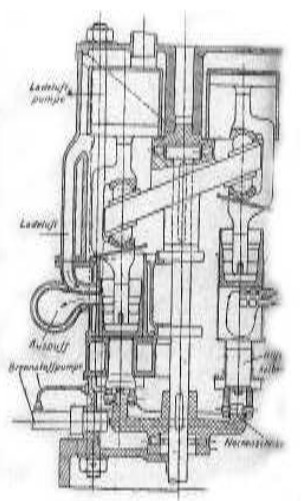

“Ringwald, in upright position”

-The working pistons are in the lower part of the figure and those on the other side of the plate are the ones that send the compressed air to sweep and fill the main cylinders. It is a two-stroke diesel.

-We see a similar system with Kamarin, Mackenzie, MAN and other engines.

-It is not the same as that of Dyna-Cam because there, on each side of the inclined disc, both are working pistons.

“Sistema del Dyna-Cam”
