From the Peugeot-Citroën group. The AX and Peugeot 106 Diesel engines that give 55 hp at 2,500 rpm with a displacement of 1,400 cc, using gas-oil, bio-diesel, etc. have been mounted on the “Gaz’Aile 2” aircraft.

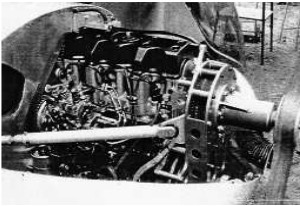

PSA Diesel Engine, adapted
"Adapted PSA Diesel Engine"

From Appendix 9: The car engine factory that supplies especially to Citroën and Peugeot (all belong to the same owner family) also has its engines adapted by home builders and small specialized companies.

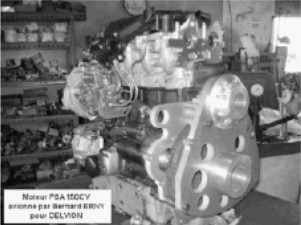

Una adaptación del 150 CV
“A 150 CV engine adaptation” (PiP)

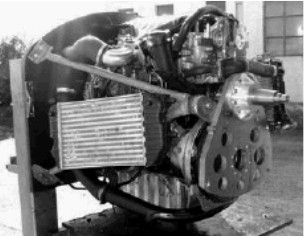

The same engine with intercooler
"The same engine with intercooler" (PiP)

-The 150 CV has reduction gear, turbocharger, intercooler, and fuel injection system.

-Lightweight engines in one way or another, and of one model or another are adapted by the enormous “homebuilt” construction hobby that exists in France.

-We see another recently adapted 55 CV PSA engine:

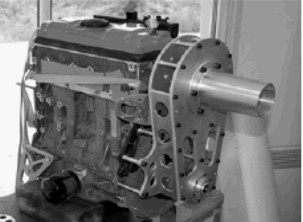

PSA 55 CV, fig. 1
PSA 55CV, fig. 2
PSA 55 CV, installed
“PSA de 55 CV” (PiP)

-The 55 CV engine that gives its power at 5,000 rpm has a displacement of 1,400 cc and can run on automotive diesel or JetA1.

-The three photos show construction stages, finally installed in a cell.

-The Peugeot 208 car engine has also been adapted for aviation.

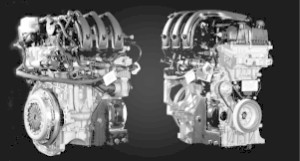

Peugeot 208 engine that has been adapted
"Peugeot 208 engine that has been adapted"

From Appendix 11: Since January 16, 2021, PSA has merged with Fiat Chrysler Automobiles to form the Netherlands-based company Stellantis.

Engines of PSA

Model: 150 CV

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:
Model: Diesel PSA, 55 HP (conversiones)

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:
Model: PSA 208

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:
