From Appendix 7: In the main text there is only one call on this brand, ignoring everything it did. We now have knowledge of two models of engines: a 5-cylinder rotary radial and a two-cylinder horizontally-opposed rotary engine (sic). Both engines were air cooled.

The 5-cylinder Phoenix engine
“The 5-cylinder Phoenix” (PiP-fmr)

-The 5-cylinder that we see installed on a monoplane designed by C. Ping in 1910 gave 50 HP.

-The two-cylinder engine gave 20 HP. It was installed on a Turnbull Glider, around 1910.

The used glider

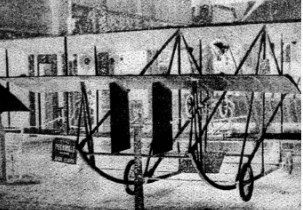

“The used glider” (PiP-fmr)

Engines of PHOENIX

Model: 2 cyl. hor. opp., 20 HP

Arquitecture: 2-cylinder Horizontally opposed
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 20 HP
Weight:

Other details:
Model: 5 cyl. radial-rotary, 50 HP

Arquitecture: 5-cylinder Rotary
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 50 HP
Weight:

Other details:
Model: 9 cyl. radial rotary

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:
