Novus built two versions of rotary radial engines. One conventional rotary with a fixed crankshaft and rotating cylinders. The other one was a double-rotary engine in which the crankshaft rotated in the opposite direction of the cylinders at half speed. In this case it drove two contra-rotating propellers.

-The rotary in the illustration has the crankshaft fixed to the aircraft's fuselage and rotating cylinders.

Small Novus
“Small Novus ”

-It does not have the front cover with the propeller base. Its power was 70 CV at 1,200 rpm.

-The Novus were first built by the Horch und Co. of Zwickau. Germany.

From Appendix 9: Below we show a new photograph of a Novus brand rotary radial.

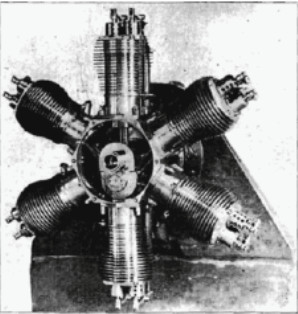

Novus engine without front cover
"Novus without front cover"

Engines of NOVUS

Model: 6 cyl. rotary radial

Arquitecture: 6-cylinder Rotary
Cooling: Air
Total Displacement: 537 cu. in.
Bore / Stroke: 120 x 130 mm
Power: 70 CV @ 1200 rpm
Weight: 221 Lb

Other details:

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
