MARCHETTI MOTOR PATENTS Inc

(USA)


MARCHETTI MOTOR PATENTS Inc engine specifications

There is also a Marchetti brand known in Italy for the manufacture of aircraft.

-But here is "Marchetti Motor Patents, Inc" that was based in the Russ Building in San Francisco, California and that offered a radial engine with no crankshaft, but with a double cam, as we see in the below photo.

8-cylinder Marchetti
"8-cylinder Marchetti"

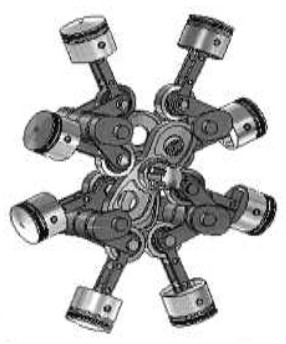

From Appendix A6/6: We have a nice drawing showing the cam and linkage mechanism of this Marchetti Cam type engine.

-The drawing is by Mr. Bill Todd and there is an animated version.

Cam Engine Mechanism Diagram
“Cam Engine Mechanism Diagram”

-The prototype was built in 1927, it gave 175 HP.

From Appendix 12: Here are two designs from cam-action engine patents, a W-engine and an in-line.

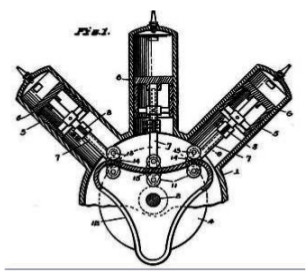

Marchetti W-engine
“W-engine”

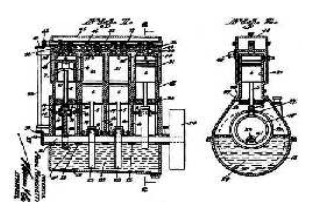

Marchetti 4-cylinder in-line patent drawing
“In-line engine”

-As for the known radial engines of 10 and 6 cylinders there are new illustrations.

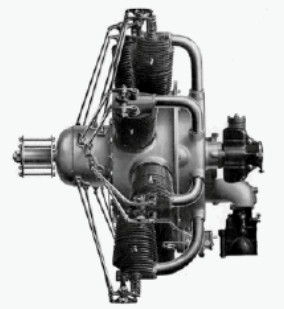

Marchetti 10-cylinder, double row, radial
“Marchetti 10-cylinder, double row, radial“

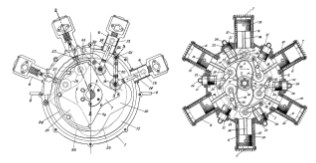

Marchetti 6-cylinder schematics
“Marchetti 6-cylinder schematics”

-To the left the Nordwick (see Nordwick Engine Company) and the Marchetti to the right.

-We found a patent for this American brand that uses a cam system instead of a crankshaft.

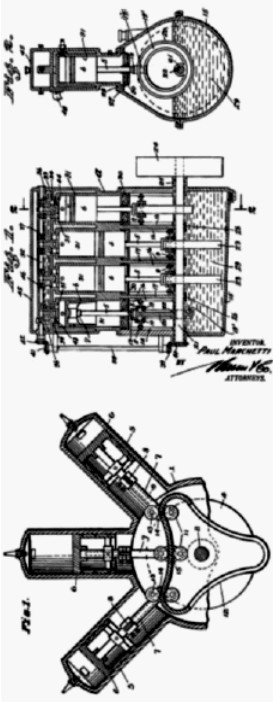

Marchetti, patent drawings
"Patent drawings"

Engines of MARCHETTI MOTOR PATENTS Inc

Model: 10 cyl. radial, cam engine

Arquitecture: 10-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:

No crankshaft, but with cam system.

Marchetti 10-cylinder radial, double row

"Marchetti 10-cylinder radial, double row"

Model: 3 cyl. fan-shape, cam engine

Arquitecture: 3-cylinder Fan-shape
Cooling:
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:

No crankshaft, but with cam system.

Marchetti 3-cyl. fan-shape, drawing

"Marchetti 3-cyl. fan-shape, drawing"

Model: 4 cyl. inline, cam engine

Arquitecture: 4-cylinder In-line
Cooling:
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:

No crankshaft, but with cam system.

Model: 6 cyl. radial, cam engine

Arquitecture: 6-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:

No crankshaft, but with cam system.

Model: 8 cyl. radial, cam engine

Arquitecture: 8-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 175 HP
Weight:

Other details:

No crankshaft, but with cam system.

Marchetti 8-cyl. radial

"Marchetti 8-cyl. radial"

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
