Updated: 15-Apr-2020
In 2009 Loravia introduced an engine for light aviation. It is the LOR-75, a 4-stroke engine that runs on gasoline. It has three cylinders and twelve valves.
-This engine is water cooled and has belted gear at a ratio of 2.47 to 1. The gearbox output transmission rotates at 2,400 rpm max.
-It has electronic ignition with fuel injection and an electric starter motor.

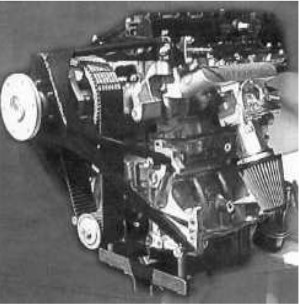

“Loravia LOR-75”
-The power is 75 CV (55 kW) at 6,000 rpm. The displacement is 998 cc.
-It can run on 85/98 automotive gasoline or AVGAS 100 LL.
Author's note: Emphasizing that their new engines come out to use automotive gasoline, perhaps because they are adapted engines.
-Certainly they can run on it, but at high altitudes this will give problems.
-Because of the lower surface pressure of the fuel, and in the aircraft and engine facilities due to the lower atmospheric pressure and heat in the engine compartment, a Vapor Lock can be produced, preventing the fuel flow, thus stopping the engines.
From Appendix 9: Below we show another picture for the engine adapted by this company for its ultralight aircraft.
“Loravia on bench”
Engines of LORAVIA
Model: LOR-75
Arquitecture: 4-stroke3-cylinder In-line
Cooling: Liquid
Total Displacement: 998 cc
Bore / Stroke:
Power: 75 CV @ 6000 rpm
Weight:
"Loravia LOR-75"
