Manufacturer of small two-stroke engines for use in UAVs (Unmanned Aerial Vehicle). It started its activities in 1996. The engine design is done with the use of 3D CAD/CAM.
“Lightning engine on UAV”
-5 models are known at the time of this writing.
“Lightning 108 D2”
-The 108 D2 has a displacement of 108 cc and gives 10 HP. The 150 D2 with 150 cc and 15 HP.

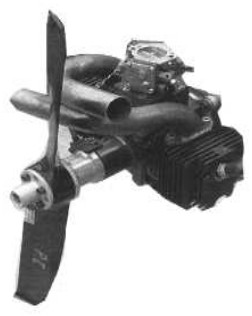

“Lighning 150 D2”
-The 250 D2, 250 cc with 22-24 HP.
“Lightning 250 D2”
“Lightning 302 D2”
-The Lightning model 604-D4-F1 has belt gear and has 4 horizontally-opposed cylinders giving 50 HP. The D4-SHF will be Diesel.
“Lightning 604-D4-F1”
Engines of LIGHTNING AIRCRAFT ENGINES
Model: 108-D2
Arquitecture: 2-stroke2-cylinder Horizontally opposed
Cooling: Air
Total Displacement: 108 cc
Bore / Stroke:
Power: 10 HP
Weight:
"Lightning 108 D2"
Model: 150-D2
Arquitecture: 2-stroke2-cylinder Horizontally opposed
Cooling: Air
Total Displacement: 150 cc
Bore / Stroke:
Power: 15 HP
Weight:
"Lighning 150 D2"
Model: 250-D2
Arquitecture: 2-stroke2-cylinder Horizontally opposed
Cooling: Air
Total Displacement: 250 cc
Bore / Stroke:
Power: 24 HP
Weight:
"Lightning 250 D2"
Model: 302-D2
Arquitecture: 2-stroke2-cylinder Horizontally opposed
Cooling: Air
Total Displacement: 302 cc
Bore / Stroke:
Power:
Weight:
"Lightning 302 D2"
Model: 604-D4-F1
Arquitecture: 2-stroke4-cylinder Horizontally opposed
Cooling: Air
Total Displacement: 604 cc
Bore / Stroke:
Power: 50 HP
Weight:
"Lightning 604-D4-F1, fig 2"
