S.A. Kosberg, belonged to the group of Glushko, Korolev, etc.

-His Design Office is OKB-154 / KB Khimavtomatiki. It is verified that its engines follow a correlative numbering similar to that of Energomash but by inserting a “0” between the letters RD and the order number, for example RD-0120 (instead of RD-120).

-The production range is very extensive. Equally to the official designation corresponds another internal one of the Office.

-The RD-0107 (8D715) from 1959-60 ran on LOX and T-1 (Ker).

-It is used in upper stages of launch vehicles.

- The Kosberg D-1 ran on Isopropyl nitrate, the D-7 as well. They were destined for the air-to-air Toropov missile.

-The initials DU, referring to engines, mean Dvigatelnaya Ustanovka.

-The Kosberg “saga” is classified with the RD-0101 (SK-1) from 1954-58, which ran on LOX-alcohol, and was used on the MiG E-50A.

-The RD-0102 (SK1K) was based on the previous one and was mounted on the Yak-27V. It ran on LOX-Kerosene.

-The RD-0103 delivered 3,528 Kgf on the Sukhoi P-1.

-The RD-0105 (SD-714) equivalent to RO-5 and RD-428, is already installed on a launch vehicle like the Vostok 8K72, in the third stage.

-The RD-0106 of the second stage of the R-9A missile had 4 chambers and was the basis for the RD-0107 and following ones until the RD-0110. It delivered 30 tons of thrust.

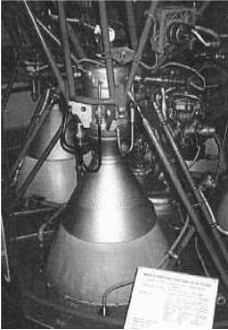

“RD-0107”

-The RD-0107 (8D715) from 1959-60 ran on LOX and T-1 (Ker).

-It was used in upper stages of launch vehicles.

-The RD-0107 and RD-0108, were evolutions of the previous -0106, with the same thrust of 30 tons. It had 4 combustion chambers.

-The photograph of the RD-0107 was taken by Mark Wade at the Tsiolkovsky Museum in Kaluga.

-We take advantage to say that Mark is an excellent reference for Russian/Soviet material.

-The RD-0108 is similar.

-The RD-0109 (other references: 8D719, RO-7 and RD-448), was manufactured between 1959 and 1960 for the Vostoks.

-The RD-0110 of 1964-67, had four chambers and delivered 30 tons of thrust on the Soyuz.

-The RD-0120 (11D122 and R0-200) reached to give 200 Tons of thrust for the Energia space ship in its first stage and on the Angara in the second. It ran on LOX and LH-2.

“Kosberg RD-0120” (PiP)

-There have been -M, -TD and -MD versions of this engine, the latter running with LNG = Liquefied Natural Gas.

-The RD-0122 is based on the RD-0120. It delivers 236 Ton.

-RD-0124 (11D451), ran on LOX and Kerosene (RG-1) and delivered 320 Tons of thrust in the third stage of the Soyuz III and the 2nd of the Angara.

-The (14D23) version of the 1990s was intended for Kvant vehicles. It used the vernier system. The RD-0124M versions as well.

-The RD-0126 was used in the upper stages, running on LOX and LH2. The same as RD-0128, RD-0129 and RD-0131.

-The RD-0132 was a cluster of 4 chambers, just like the RD-0133.

-The RD-0143 and its -A version ran on LOX and Liquefied Natural Gas, and were destined for Vozdushniy Start vehicles.

-Curiously, the RD-0146 is the Russian version of the American Pratt & Whitney RL-10A41. It was used in the Centaur's upper stage.

-The 8D415K of the 1960’s was intended for the N-1 concept. It delivered 150 tons of thrust and ran on LOX/Ker.

-The RD-0149 delivered 5 tons of thrust, and ran on LNG and LOX. It was a variant of the RD-0141.

-If so far we have teated the engines that run on LOX, now, in the “200” series they use nitric acid and amines.

-The RD-200 was made on the basis of the SZ.1200 from Isayev, with nitric acid and amine. (RO1-154).

-The RD-0201 that was mounted in the third stage of the V-1100 had four chambers.

-The 8D43 was mounted in the UR500's 1st stage, running on N2O4/UDMH.

-The RD-0203 is a cluster consisting of three RD-0203 and one RD-0204. It delivers 228 tons of thrust.

-The RD-0204 gives 57 tons of thrust.

-The RD-0205 is an engine consisting of an RD-0206 and four RD-0207 in a vernier assembly.

-The RD-0206 gives 58 tons of thrust for the UR-200's 2nd stage.

-The RD-0207 (8D67) was a cluster of four chambers with nitric acid and Asymmetric Dimethyl Hydrazine (UDMH).

“Kosberg RD-0208” (PiP=mw)

-The RD-0209 is a modified -0208 to make the -0211.

-In the second stage of the Proton K there is a cluster of three RD-0210s and one RD-0211.

-The latter (8D412) delivers 60 tons of thrust.

-The RD-0212 (RD-473), has a RD-0213 main chamber and 4 RD-0214s.

-They began to be used in 1967 being the last flight in 1999, on the Proton K-3.

“Kosberg RD-0213 of the -0212” (PiP=mw)

-The RD-0213 gives 59.4 tons of thrust while the four vernier RD-0214s, together give 3.1 tons. Therefore, the total thrust of the RD-0212 was 62.5 tons.

-The RD-0215 ​​was also a cluster consisting of one RD-0217 and three RD-0216s.

-The RD-0221, continues running on N2O4 / UDMH with 8,000 kgf of thrust for the upper stage of a missile. This engine is from the late 1960’s.

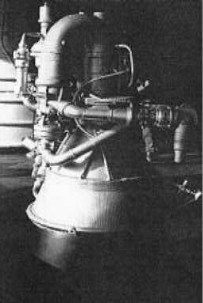

“Kosberg RD-0221”

-The last four photographs of this chapter are credited to Dietrich Haesler, via Mark Wade.

-Another small one is the RD-0225 main engine for the propulsion of the Almaz space station. It gives 400 Kgf of thrust.

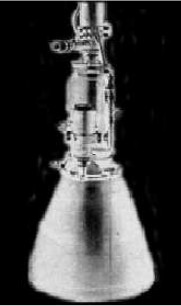

“Kosberg RD-0225” (PiP)

-Again we find a cluster when dealing with RD-0228. It is an assembly of a RD-0229 main engine plus four RD-0230 verniers.

-The RD-0229, used from 1967 to 1975, was assigned to the second stage of the R-36M. The RD-0229 M engine used LOX / LNG, instead of the usual fuel in this group.

-The RD-0231 gave a thrust of 3 tons and was mounted on the Granit missile.

-The RD-0232 group consisted of one -0234 and three -0233s.

-The RD-0234 was a modified -0233 and was used in three versions using first N2O4 / UDMH, then LOX / kerosene and LOX / Methane (LCH4).

-It had a long nozzle for high altitudes. The RD-0235 gave 25 tons of thrust.

-The RD-0237 is the normal version of the -0235, and was used on the UR-100N to boost the “warhead”. It gave 500 kgf of thrust.

The RD-0242 that began its life in 1977 has reached our days going through several versions.

-The RD-0243 is another cluster of one RD-0244 engine and four RD-0245 verniers.

-The RD-0244 delivers 70 tons on the R-29M and on the Burlak. There is a normal and a cryogenic version.

-The same fuels were used for the RD-0245 that gave 21 tons of thrust.

-The RD-0246 is considered a development of the RD-0243 cluster.

-The Chelomey missile is powered by the RD-0250 or the RD-0251, the latter with four -0236 chambers.

-The RD-0255 is another cluster consisting of an RD-0256 and four -0257s.

-We will mention special engines of this important designer.

-It's about nuclear engines, very fashionable in the mid-1960s.

-The RD-410 NTP was used between 1965 and 1991. It gave 3.6 tons of thrust and was destined for the UR-700M missile.

-The propellant was LH2 or hydrogen, heated by the nuclear thermal reactor.

-It is considered the only operative nuclear rocket engine in the USSR.

“RD-0410” (PiP)

-The RD-0411 was another nuclear study engine to be used on a trip to Mars.

-Other special engines have been the RD-0600, a laser engine with dynamic gas based on a medium of carbon monoxide + air + nitrogen + ethanol.

-The RD-0650TF, used LOX / LH2 / Kerosene, or tripropellant, together with the RD-0700 and -0750 they were alternative engines for the Angara system. They are derived from RD-0120 engines that are under study from 1990 until today.

From Appendix 9: Another listing of this brand with some more equivalences, with respect to the main text:

-11B91 (RD-0140), 11D127 (RD-0120), 11D122A (RD-120M), 11D123 (RO-134R y RD-146), 11D23, 11D24 (RD-0225), 11D55 (RD-0110), 14D23 (RD-0124), 14D451M (RD-0124), 15D2 (RD-0216), 15D95 (RD-0232), 8D411K (RD-0210), 8D411K (RD-0210), 8D412K (RD-0211), 8D415K (for the N-1), 8D43 (RD-0208 y RD-0210), 8D43+11D43, 8D44 (RD-0203), 8D45 (RD-0202) 8D46 (RD-0205), 8D47 (RD-0206), 8D48 (RD-0213), 8D49 (RD-0212), 8D67 (RD-0207), 8D714 (RDE-0105), 8D715 (RD-0106), 8D715K (RD-0107), 8D715P (RD-0108), 8D719 (RD-0109), 8D811 (RD-0214).

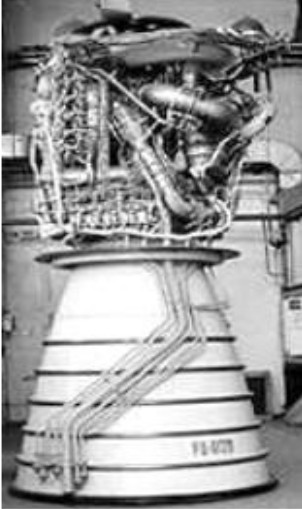

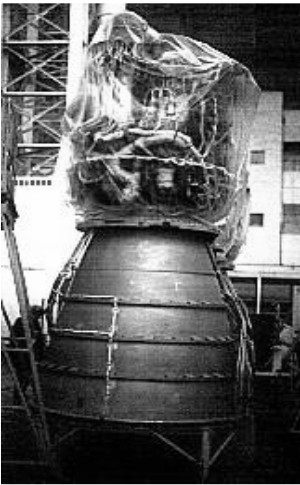

“RD-0120” (PiP=mw)

“Another RD-0120” (PiP=mw)

-Another listing of Kosberg production: D-7, RD-0101, RD-0102, RD-0103, RD-0104, RD-0105, RD-0106, RD-0107, RD-0108, RD-0109, RD -0110 (11D55), RD-0110MD, RD-0120CH, RD-0120M, RD-0120M-CH -TD.

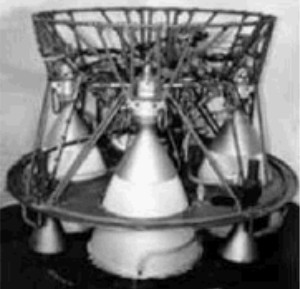

“RD-0110”

-And continuing with the listing: RD-0122, RD-0124, RD-0124 (14D23 y 11D451), RD-0124M, RD-0124ML, RD-0126,

“RD-0124” (PiP=mw)

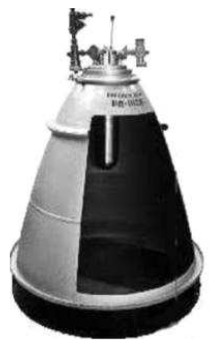

“RD-0126”

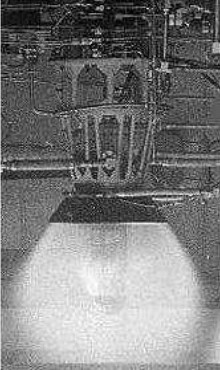

“RD-0126E”

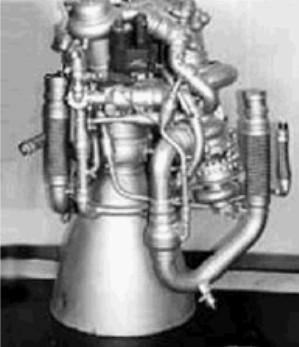

“RD-0216” (PiP=mw)

-RD-0126A, RD-0126E, RD-0128, RD-0129, RD-0131, RD-0132, RD-0132M, RD-0133, RD-0134, RD-0139, RD-0140, RD-0141, RD-0142, RD-0143, RD-0143A, RD-0144, RD-0145, RD-0146, RD-0149, RD-0154, RD-0155,

-RD-0200 (SZ1200 Isayev), RD-0201, RD-0202, RD-0203, RD-0204, RD-0205, RD-0206, RD-0207, RD-0209, RD-0210, RD-0210HC, RD-0211, RD.0212, RD-0213, RD-0214, RD-0215, RD-0215, RD-0216, RD-0217, RD-0221, RD-0225, RD-0228, RD-0229, RD-0229M, RD-0230, RD-0231, RD-0232, RD-0233, RD-0234, RD-0234HC, RD-0234CH, RD-0235, RD-0236, RD-0237, RD-0242, RD-0242HC, RD-0242M, RD-0242MI, RD-0243, RD-0244, RD-0244KD. RD-0244HC, RD-0245, RD-0245HC, RD-0246, RD-0250, RD-0251, RD-0255, RD-0256, RD-0256HC, RD-0256 Methan, RD-0257, RD-0410, RD-0411, RD-0600, RD-0650TF, RD-0750.

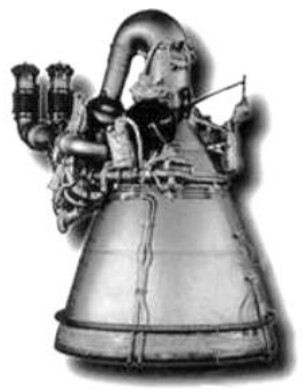

RD-0210” (PiP=mw)

-The following are also built by Kosberg:

RD-448 (RO-7 and RD-0109), RD-461 (RD-0110), RDE- 461 (11D55, 8D715K, RO-8 and RD-0108), RD-461 (RO- 9 and RD-0107 ), RD-465 (8D49 and RD-0210), RD-468 (RD-0211), RD-473 (RD-0212 and RD-0213), RO1-15H (RD-0200), RO-200 (RD- 0120), RO-31, RO-5 (RD-428), RO-97 (RD-0126), RO-97A (RD-0126A), RO-97E (RD-0127E)
