Kimball Aircraft Corp of Naugatuck in Connecticut began manufacturing aviation engines in 1928.
-Standing out the Kimball K. "Beetle", a seven-cylinder radial, giving 135 hp at 1,800 rpm with a displacement of 585 cu. in.
-In addition to the 7-cylinder radial engine “Beetle” the Kimball Aircraft Corp. made another engine with two horizontally opposed cylinders of 25 HP, during the same time as the one mentioned above. This engine was known as the Gnat and was presented in 1937.
“Kimball, Gnat”
-On the radial engine the valves are behind the cylinder heads, the intake below and the exhaust above.
-It has L-shape combustion chambers.
-Below we show a front and semi-rear view of the 7-cylinder radial engine.
“Kimball Beetle”

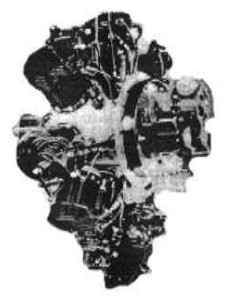

“Another view of the Beetle”
Engines of KIMBALL
Model: Beetle K
Arquitecture: 7-cylinder Radial
Cooling:
Total Displacement: 585 cu. in.
Bore / Stroke:
Power: 135 HP @ 1800 rpm
Weight:
"Kimball Beetle, side view"
Model: Gnat M
Arquitecture: Horizontally opposed
Cooling:
Total Displacement:
Bore / Stroke:
Power: 25 HP
Weight:
"Kimball, Gnat"
