Updated: 28-Jul-2019
Diesel engines built from 1928 by “Ateliers et Chantiers de le Loire SA” Workshops, near Paris. Sometimes this brand is simply known as "Jalbert".
-They made a four-cylinder 160 hp Diesel and a 6-cylinder 235 hp, both with at least 6 cylinders arranged inverted inline.
-Later they went on to design more complex models such as the 16H that gave 600 hp at 2,400 rpm and the 24H with 1,000 hp.
-The first engine was made in 1936 and the 24H in 1938. They used a kind of carburetor that injected the mixture under pressure, instead of the injectors we know. They were in the experimental field.
-The Type 11 Diesel was an engine with vertical H-cylinders, with two crankshafts and gave 500/600 hp depending on the rotation speed of 2,250 or 2,400 rpm.
“Jalbert Loire”
-Their engines were constructed by Société des Ateliers de la Loire. As in Jalbert of the previous chapter, it does not have a typical diesel engine injector.
-The system they used is that of an injector piston. See Jalbert.
Engines of JALBERT - LOIRE
Model: 16 cyl., in H, 600 CV
Arquitecture: 16-cylinder H-Engine
Cooling:
Total Displacement:
Bore / Stroke:
Power: 600 CV @ 2400 rpm
Weight:
Model: 24 cyl., en H, 1000 HP
Arquitecture: 24-cylinder H-Engine
Cooling:
Total Displacement:
Bore / Stroke:
Power: 1000 CV
Weight:
Model: 4 cyl., Diesel, 160 HP
Arquitecture: 4-cylinder In-line
Cooling:
Total Displacement:
Bore / Stroke:
Power: 160 CV
Weight:
Model: 6 cyl., Diesel, 235 HP
Arquitecture: 6-cylinder In line inverted
Cooling:
Total Displacement:
Bore / Stroke:
Power: 235 CV
Weight:
Model: Type 11, en H, 500/600 HP
Arquitecture: H-Engine
Cooling:
Total Displacement:
Bore / Stroke:
Power: 600 @ 2400 rpm
Weight:

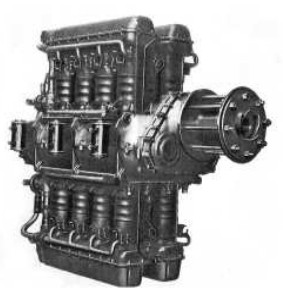

"Jalbert Loire H-engine"
