Aerospace Engines A to Z
Aerospace Engines A to Z

Updated: 06-Jun-2019

It is the "Roman Aeronautics Industry" of Bresov.

-In parallel to the Yugoslav IAM, they built the Lorraine 12Eb, the 9-cylinder Gnome-Rhone K9 with 640 CV, the 14-cylinder K14 in the IV-C32 versions with 870 CV for the IAR-37 aircraft, and the III- C36 with 940 CV on the IAR-80 aircraft from 1942.

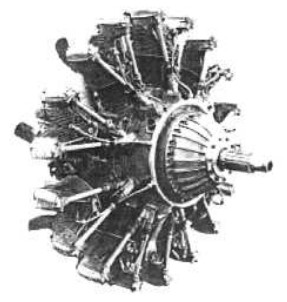

Motor IAR-9
“IAR-9”

-The 14K (or K14) IIC32 was a Mistral Major and the K14 model 1000A, gave 1,025 CV.

-IAR-6G1 180 CV engines were also made with 6 inline cylinders for the IAR-27 aircraft. They also made a 4-cylinder inline engine. These two were clearly De Havilland license.

-Lastly they made the RR Viper 633-41 with 4,000 lbf of dry thrust and 5,000 lbf with afterburner for the IAR-93 "Orao" aircraft.

-In the 1940's Industria Aeronáutica Romana made the 9-cylinder radial IAR-9 with 650 CV at 4,000 feet of altitude.

From Appendix 6: The illustration below of the 1000-A model engine that gave 1,000 CV is from 1940. It had 14 cylinders in double row and was offered with two types of supercharging, for 12,500 feet and for 10,500 feet.

-In reality the maximum power at take off and climb could reach 1,140 CV.

-The 1000A is a license of the Gnome-Rhone 14K.

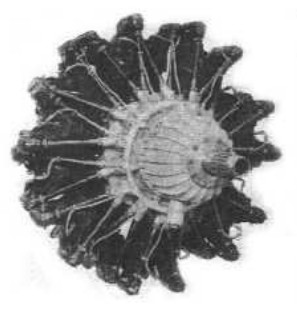

The IAR 1000-A
“The IAR 1000-A”

-This engine model was pending in the main text.

From Appendix 9: In the main text, a 6-cylinder in line with the reference G-1 is mentioned.

-At the Bucharest Military Museum, one of these engines is exhibited. The picture is taken by E.V., proving it to be an engine with English license of the DH Gipsy Six.

IAR G1
“IAR G1”

G1 engine plate
“G1 engine plate”

Unidentified IAR radial engine
“Unidentified IAR radial engine”

-It is "Industria Aeronautica Rumana". In a recent visit to the Aeronautic Museum in Bucharest we could see the four-cylinder engine that was built under license from DeHavilland.

Motor IAR de cuatro cilindros
“IAR de cuatro cilindros”

-The engine is mutilated and without accessories. To its side there is another one that does have accessories.

IAR-4, more complete
“IAR-4, more complete”

-There is also a six-cylinder IAR-6-G1 that gave 180 CV, next to an original DeHavilland.

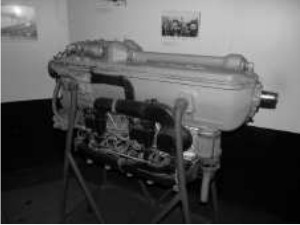

IAR-6-G1 licenced Gipsy Six from DeHavilland
“IAR-6-G1 licenced Gipsy Six from DeHavilland”

-The IAR-6-G1 was a six-cylinder engine built under license by IAR, an identical copy of the Gipsy Six.

-In fact, at the Bucharest Museum there is an original DeHavilland engine next to it.

-Both are identified by their name on the crankcase top cover.

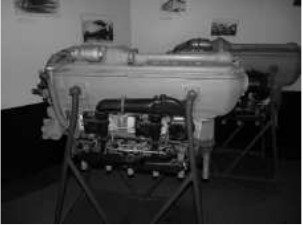

An authentic Gipsy Six engine
“An authentic Gipsy Six engine”

-Just behind it, we see the one built under license by IAR, the 6-G1.

Engines of IAR

Model: 1000-A (DB Lic.)

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:
IAR 1000-A

"IAR 1000-A"

Model: Gnome-Rhone, K-14 (Lic.)

Arquitecture: 14-cylinder Radial
Cooling: Air
Total Displacement: 38720 cc
Bore / Stroke: 146 x 165 mm
Power: 996 HP
Weight: 540 Kg

Other details:
Model: Gnome-Rhone, K-7 (Lic.)

Arquitecture: 7-cylinder Radial
Cooling: Air
Total Displacement: 19300 cc
Bore / Stroke: 146 x 165 mm
Power: 260 @ 2000 rpm
Weight: 270 Kg

Other details:
Model: Gnome-Rhone, K-9 (Lic.)

Arquitecture: 9-cylinder Radial
Cooling: Air
Total Displacement: 24900 cc
Bore / Stroke: 146 x 165 mm
Power: 500 CV @ 1500 rpm
Weight: 355 Kg

Other details:
Model: IAR-4 y 6 G1

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:
IAR-4, more complete

"IAR-4, more complete"

Model: IAR-7K y 9K (Lic. Gnome-Rhone)

Arquitecture:
Cooling: Air
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:
IAR-9 engine

"IAR-9 engine"

Model: III-C36

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:
Model: Jupiter (lic. G-R/Bristol)

Arquitecture: 9-cylinder Radial
Cooling: Air
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:
Model: Lorraine 12Eb (Lic.)

Arquitecture: 12-cylinder Radial
Cooling: Air
Total Displacement: 24400 cc
Bore / Stroke: 120 x 180 mm
Power: 450 CV @ 2500 rpm
Weight:

Other details:
Model: Viper 633-41 (Lic.)

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:
