Below we show an illustration of the coaxial, radial, two-stroke engine, with a power of 65 CV. It is from the year 1910.

-With a description of extremely complex operation, the author does not dare to transfer it, although I have a text for anyone who dares.

Gobe et Diard, 65 CV
“Gobe et Diard, 65 CV”

From Appendix 12: Electric lighting company in Paris that had this engine or project.

Motor rotativo Gobe-Diard bicilindrico
“Gobe-Diard twin-cylinder rotary” (PiP-Flu)

-The 25 CV has just two rotary cylinders. It looks like a two-stroke engine with ports in the cylinder bases and exhaust valves in the cylinder heads.

Engines of GOBE et DIARD

Model: 2 cils rotativo

Arquitecture: 2-cylinder Rotary
Cooling:
Total Displacement:
Bore / Stroke:
Power: 25 CV
Weight:

Other details:

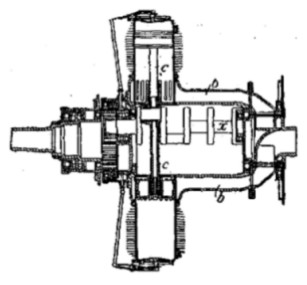

Gobe-Diard twin-cylinder rotary engine

"Gobe-Diard twin-cylinder rotary engine" (PeT)

Model: 8 cils. coaxial, (1910)

Arquitecture: 8-cylinder
Cooling:
Total Displacement:
Bore / Stroke:
Power: 65 CV
Weight:

Other details:

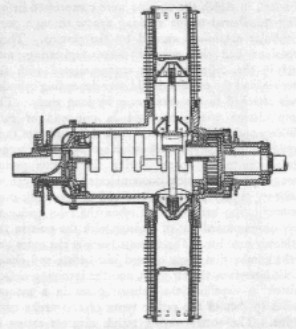

Gobe et Diard, 65 CV

"Gobe et Diard, 65 CV"

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
