Finally, a photograph of the Garuffa-Gargiulo shown at the 1921 Paris Air Show.

-It is a two-stroke, 9-cylinder engine that runs on Diesel oil.

The Garuffa-Gargiulo Diesel engine
“The Garuffa-Gargiulo Diesel engine”

Engine architecture, supercharged
"Engine architecture, supercharged"

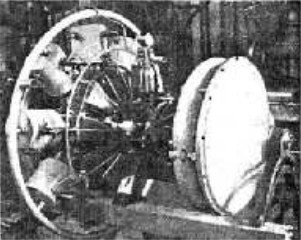

From Appendix 12: Below we show a new picture of the Garuffa-Gargiolo engine, seen from the other side.

The blower compressor in the foreground
“The blower compressor in the foreground”

Engines of GARUFFA-GARGIULO

Model: 9 cils. radial-rotativo, Diesel

Arquitecture: 2-stroke9-cylinder Rotary
Cooling: Liquid
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:
Garuffa-Gargiulo, Diesel

"Garuffa-Gargiulo, Diesel"

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
