Manufacturer from Sussex of a range of opposed-cylinder engines with four valves per cylinder at a four stroke cycle.
-The CF-077A model with 1261 cc of displacement gave 60 hp at 3,600 rpm. The CF-077B is geared.
"Emdair CF-077A"
-The CF-092A model, with a displacement of 1511 cc gave 70 hp at 3,600 rpm. The B-version was geared.
"CF-092B"
-The CF-100A engine with a displacement of 1606 cc gave 75 hp at 3,400 rpm, and the largest version, the CF-112A with 1834 cc, gave 85 hp and it also had a B version.
"Drawing of an Emdair engine"
-In the drawing you can see the parts of this whole range of engines characterized by their four valves in each cylinder.
-Emdair Ltd. in Hasting, Sussex was the constructor of the Weslake (see) four-stroke engine line for ultralight. (The two-stroke line went to Normalair -NGL-, see).
-The manufacture of these engines by Emdair began around 1980. All these engines are air-cooled horizontally-opposed two-cylinder. They have double ignition and fuel injection.
-The largest engine was the CF-150A that gave 95 hp at 2,800 rpm, and was built between 1985 and 1987.
Engines of EMDAIR
Model: .CF-092A y B
Arquitecture: 4-stroke2-cylinder Horizontally opposed
Cooling:
Total Displacement: 1511 cc
Bore / Stroke:
Power: 70 HP @ 3600 rpm
Weight:
The B version is geared.

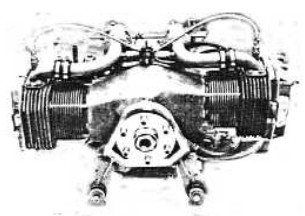

"Emdair CF-092B"
Model: CF-077A
Arquitecture: 4-stroke2-cylinder Horizontally opposed
Cooling:
Total Displacement: 1261 cc
Bore / Stroke:
Power: 60 HP @ 3600 rpm
Weight:
"Emdair CF-077A"
Model: CF-077B
Arquitecture: 4-stroke2-cylinder Horizontally opposed
Cooling:
Total Displacement: 1261 cc
Bore / Stroke:
Power: 60 HP @ 3600 rpm
Weight:
With gear.
Model: CF-100A y B
Arquitecture: 4-stroke2-cylinder Horizontally opposed
Cooling:
Total Displacement: 1606 cc
Bore / Stroke:
Power: 75 HP @ 3400 rpm
Weight:
The B version is geared.
Model: CF-112A y B
Arquitecture: 4-stroke2-cylinder Horizontally opposed
Cooling:
Total Displacement: 1834 cc
Bore / Stroke:
Power: 85 HP
Weight:
The B version is geared.
Model: CF-150A
Arquitecture: 4-stroke2-cylinder Horizontally opposed
Cooling:
Total Displacement:
Bore / Stroke:
Power: 95 HP @ 2800 rpm
Weight:
