Subaru based engines, developed by Jan Eggenfellner around 1993.

-They are Four- and six-cylinder engines with gear and certainly powerful.

-These engines were water cooled, had fuel injection and were adaptable with fixed or variable pitch propellers. There are versions with turbocharger.

"Subaru-Eggenfellner"

-The 2.5 with simple camshaft on cylinder heads gave 175 hp at 5,200 rpm. It was certainly a Subaru of previous technology and adapted by Jan.

-The 2'5 XT delivered 190 hp at 5,200 rpm. It had all the aforementioned accessories. With supercharger it gave 200 hp.

-The six-cylinder was the H-6-3.0 model that gave 195 hp.

-It has a double overhead camshaft (DOHC), 24 valves in total, and electronically controlled ignition with a high coil in each cylinder.

-To be installed in the Lancair 360, a high performance homemade airplane.

From Appendix 6: Photo taken from an RV-9 model advertisement that includes the cooling air intakes for the cylinders.

"RV-9 QECA"

-NOTE: QECA is in the maintenance jargon "Quick Engine Change Assembly". Sometimes it includes the cowling.

-Eggenfellner uses the Subaru RV-6, -7, -8 and -9. For example, in the side view of the previous RV-9 engine we distinguish its characteristic rocker covers.

"RV-9 side view"

To carry out the conversions with these and other engines, they use an Eggenfellner gearbox. They are compact and have various reduction ratios.

-The one shown below is coupled directly on the power take-off (PTO) of each engine.

-That is, on the crankshaft, either at the end of the flying wheel or at the front. Now we have an exterior photo and another without the upper cover.

“Eggenfellner gearbox”

"Gear train of the Eggenfellner gearbox"

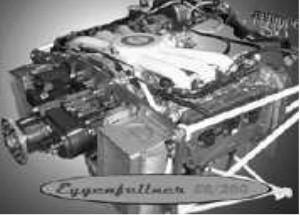

“The E6/200 engine”

From Appendix 9: Adapter specialized for Subaru engines.

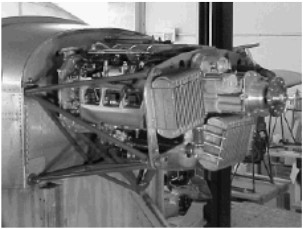

"Model 2.5 STi -Subaru-"
