It is the "C-B Aircraft Co." in Pawtucket, Rhode Island.
-They built the Dragon model in two power versions.

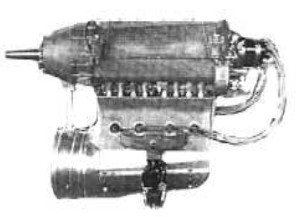

"Dragon with gear"
-It is an inverted, air-cooled, in-line, four-cylinder engine.
-Very special in this type of engines is the addition of a small but effective fan to force the cooling on the ground. It is driven by mechanical transmission.
"Dragon Type IV-G, front view"
-These engines were built in 1932. They are the IV-D that gave 60 hp with direct crankshaft-to-propeller output, and the IV-G giving. Both had 214 cu. in. of displacement.
-The 90/100 hp Dragon engine had another companion, the Dragon without gear.
-The engines were offered with direct output or reducing gear. They were the Dragon Type IV-D and Dragon Type IV-G. The first giving 65 hp and the latter 90/100 hp.

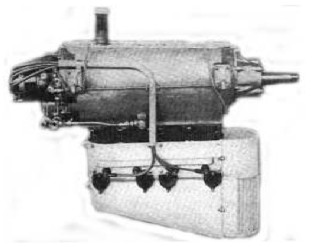

"Crouch-Bolas Type IV-D"
Engines of CROUCH - BOLAS
Model: Dragon, IVD de 60 HP
Arquitecture: 4-cylinder In-line
Cooling: Air
Total Displacement: 214 cu. in.
Bore / Stroke:
Power: 60 HP @ rpm
Weight:
With direct crankshaft-to-propeller output.
"Crouch-Bolas Type IV-D"
Model: Dragon, IVG de 90 HP
Arquitecture: 4-cylinder In line inverted
Cooling: Air
Total Displacement: 214 cu. in.
Bore / Stroke:
Power: 90 / 100 HP @ rpm
Weight:
Geared engine.
"Dragon Type IVG, front view"
