Updated: 22-May-2017

Coventry Victor Motor Company was engaged in manufacturing horizontally-opposed cylinder engines since 1911 for multiple applications.

-These engines had relative low power, between 2 and 50 hp, with 2 to 8 cylinders.

Coventry-Victor Neptune ad
"Coventry-Victor Neptune ad"

-Between 1924 and 1926 they built the 2-cylinder OHV model IV that gave 20 hp, and between 1925 and 1927 came out the Neptune I giving 40-45 hp with simple ignition.

-They made Neptune II and III. We are interested in the Flying Neptune that gave 55 hp at 3,200 rpm and had dual ignition.

-Seen in the French Druine, in the Turbulent and in the Piper L4C.

-The Neptune was in the liter and a half of displacement category.

-It had four horizontally opposed cylinders as we can see in the illustration below.

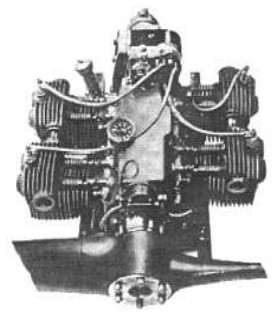

Coventry Victor, Flying Neptune
"Coventry Victor, Flying Neptune"

From Appendix 6: The Flying Neptune is from 1923, the year in which they presented the two-cylinder horizontally opposed engine for Light aviation.

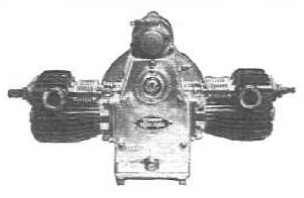

Coventry Victor Twin Flat
"Coventry Victor Twin Flat"

-It gave about 20 hp with 699 cc of total displacement.

-Below we show a picture of a located Coventry-Victor "Gnat" that was intended for light aviation as well. It was built in 1924 and delivered 38 BHP.

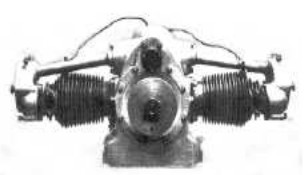

Coventry-Victor Gnat
"Coventry-Victor Gnat"

-This company is Coventry Victor Motor Co. Ltd. (Located in Coventry just like Coventry Climax, but they are different companies).

-We have already seen the use of air-cooled aviation engines of this brand.

-In the constant pursuit of engines we have stumbled upon a water-cooled version of the Victor Cub.

-There were two versions, the normal Victor Cub giving 10-17 hp and the Senior Victor Cub giving 12-20 hp. Both with horizontally-opposed cylinders.

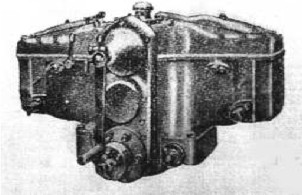

Cuesta distinguir que se trata de un motor
"It is difficult to distinguish that it is an engine"

Engines of COVENTRY VICTOR

Model: Cub

Arquitecture: 2-cylinder Horizontally opposed
Cooling: Liquid
Total Displacement:
Bore / Stroke:
Power: 10 / 20 HP @ rpm
Weight:

Other details:

There were two versions, the normal Victor Cub giving 10-17 hp and the Senior Victor Cub giving 12-20 hp. Both with horizontally-opposed cylinders.

Model: Gnat

Arquitecture: 2-cylinder Horizontally opposed
Cooling: Air
Total Displacement:
Bore / Stroke:
Power: 38 HP @ rpm
Weight:

Other details:
Coventry-Victor Gnat

"Coventry-Victor Gnat"

Model: Neptune

Arquitecture: 4-cylinder Horizontally opposed
Cooling: Air
Total Displacement: 1500 cc
Bore / Stroke:
Power: 40 / 55 HP @ rpm
Weight:

Other details:

Between 1925 and 1927 came out the Neptune I giving 40-45 hp with simple ignition.

They made Neptune II and III. We are interested in the Flying Neptune that gave 55 hp at 3,200 rpm and had dual ignition.



Coventry Victor, Flying Neptune

"Coventry Victor, Flying Neptune"

Model: Twin-flat

Arquitecture: 2-cylinder Horizontally opposed
Cooling: Air
Total Displacement: 699 cc
Bore / Stroke:
Power: 20 HP @ rpm
Weight:

Other details:
Coventry Victor Twin Flat

"Coventry Victor Twin Flat"
