Between 1910 and 1911, Mr. Canda built three types of engines 60, 80 and 150 hp at 1,000 rpm.

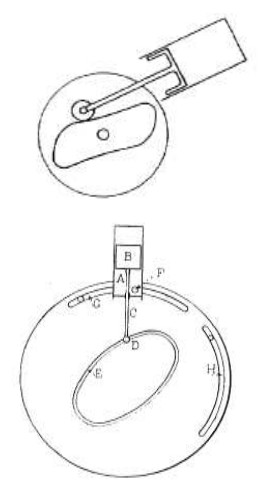

"Two Canda principle versions"
-As main feature they had no crank but a central cam.

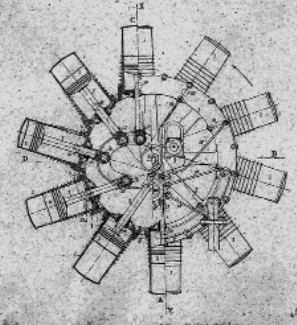

"Canda radial diagram"
-It had pistons and rigid connecting rods. The cylinders were not aligned to the engine's center but were displaced to contribute to the central cam's rotation.

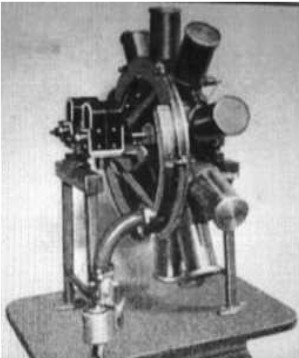

"Canda radial"
We have a diagram for this engine that has a cam instead of a conventional crankshaft,

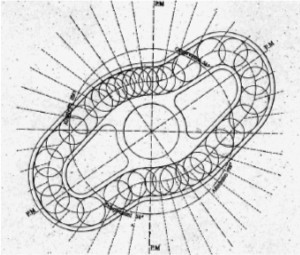

“Engine and cam details”
Engines of CANDA
Model: 150 HP
Model: 60 HP
Model: 80 HP
The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.
To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.
A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.
The design is from Juan Soler, Sant Cugat, Barcelona
Below we show a flash of version 3
Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
