Before the Great War, around 1905 they built a two-stroke, four-cylinder, radial engine at 90°. Its characteristic is that the connecting rods and pistons are rigid and crank pin slides along an elongated hole at the foot of the two connecting rods which are opposed and joined at this point.

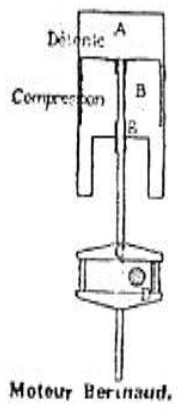

Berthaud - system diagram
"System diagram"

-This is the La Hire operating principle: under the working face A, there is a second chamber B in tandem formed by the bottom of the piston where a pre-mixture-pressure is created and prepares it to enter A.

Berthaud engine
"Berthaud engine"

-Associated with Prini they built the water-cooled, inline, 4-cylinder engine with the same operating principle. (See Prini et Berthaud)).

Motor Berthaud et Prini
"Motor Berthaud -et Prini"

From appendix 6: We have a new picture of an engine of this type. It has four cylinders in X with rigid rods and a slotted hole in the center of them to allow rotation of the crankshaft.

-It has 4 cylinders and delivers 50-60 CV.

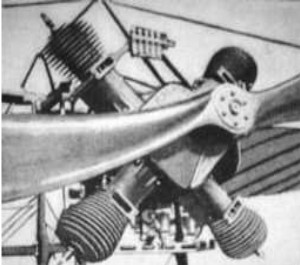

Bonito aspecto del Berthaud con hélice
"Nice view of the Berthaud X engine with propeller"

Engines of BERTHAUD

Model: 4 cils, en linea

Berthaud et Prini engine

"Berthaud et Prini engine"

Model: 4 cils. en “X”, 50/60 CV

Berthaud X engine

"Berthaud X engine"

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
