From appendix A2/6: Bayern Chemie is a chemical company specialized in rocket fuels.

-Generally solid fuel, but some of them of variable thrust, double-pulse engines, gel-based propelled, hypersonic, etc.

"Molded solid fuel"

-The solid fuel is mainly composed of oxidizer (typically ammonium perchlorate) and fuel is the typical poly butadiene or HTPB. Plus additives and load stabilizers.

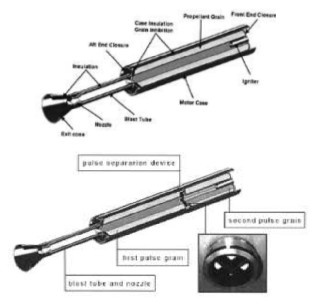

"Solid rocket engines"

-The first one is normal and the second double-pulse. It has double load, separated by the part that is shown in the small attached picture. They are very light engines.

-For hypersonic speeds, en 1993, they had the HFK1 available for Mach 5.

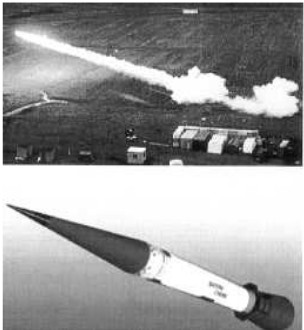

"HFK1 and a test launch"

-The HFK2 is for Mach 7 and has been tested in 2003.

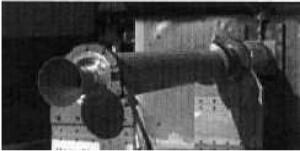

“HFK2 and its engine”

-And from 2002 to 2007 they made a missile with a variable thrust engine and gel-based fuel, called monergol y diergol.

-They are environment friendly, which is an irony as we are talking about a weapon.

“With gel-based fuels”

-The trials are done currently, at the moment of editing. (2008-2009, Book).

From appendix 6: Bayern-Chemie Gesellschaft, manufactures a wide range of rockets and fuel loads.

-Generally for higher speed and even hypersonic. Since 1963 they supply to civilians and the military.

-Propellant-load cartridges for rechargeable engines with a minimum of smoke and attenuated IR signal.

-For civilian use there are rockets used for rescue from sea, lighting flares, etc.

"Loads and groove details"

-Molding with star cutouts dramatically improves the combustion area and thrust.

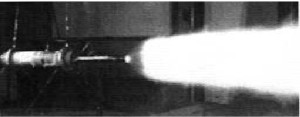

"ALARM solid rocket"

-The Kriss engine is a booster for the French projectile-dispenser Apache-AP whose mission is to burst airport runways.

-It has composite solid propellant load, nozzle and deployable stabilizing fins.

"Kriss engine"

-The VT-1 is a solid rocket motor with composite filament casing. With reduced-smoke propellant grain.

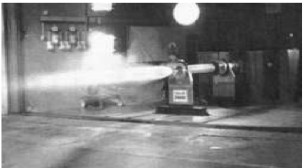

“Test and details of the VT-1”

-Bayern-Chemie also has the production license for the famous Patriot PAC-2 model anti-missile rockets.

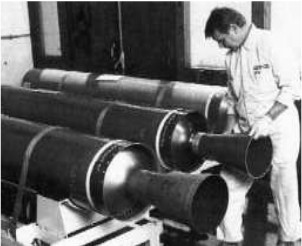

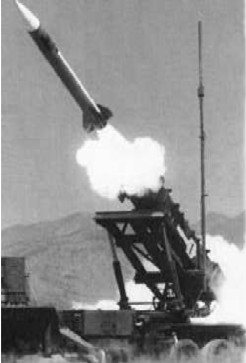

“The Patriot and details of its engines”

-It uses HTPB loads in a steel body.

"Solid fuel escape engine"

-This engine is used for submarine rescue systems.

-Another curious engine is the one that uses the A400M military transport aircraft if it finds itself into profound loss for regaining maneuver. It is only used during the test program.

"Rocket engine for the A400M"

-The engine range is wide for all types of rockets, including stage propulsion (throteable) as we can see in the examples below.

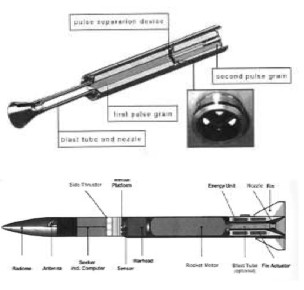

"Other engines"

-They study  and manufacture Gel type fuel of the monoergol or Diergol kind. Powered by gas generators.

-They develop hypervelocity propulsion with their missiles HFK type 1 and 2.

-As well as ramjet type engines with liquid and solid fuels.
