This company manufactured aircraft engine models used by the Wright brothers in Europe, conducted by the brothers themselves in 1904.

-It had 4 separated upright cylinders with a diameter of 100 mm by 112 mm stroke. A 1400 rpm they delivered 27/30 CV and weighed 80 Kg.

-It was a copy of Wright's type 4 engine, but Bariquand et Marré called it “Type W”, (from Wright), as we can see on the identification plate.

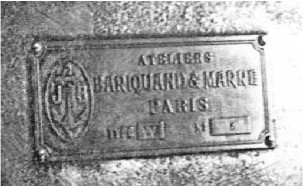

"Identification plate"

-These engines did not have carburetors. A small geared pump shot out a gasoline jet into a common collector for the four cylinders.

-It had steel casings and aluminum cylinders.

-It also had a centrifugal pump for the water at the front side as showed in the picture below.

-A device might press the valves for starting and engine failure during flight, leaving the propellers spin and not slowing down the flight.

"Bariquand et Marré, Type W"

-The oil pump was very similar to the gasoline one. The general look was like the car engines of those days.

From appendix 9: This factory made the four-cylinder Wright engines for Europe (From the Wright brothers in the USA). Therefore the model is known as “W”.

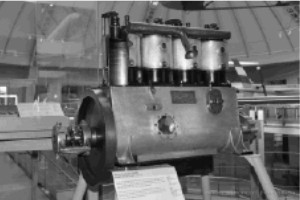

"With flywheel as it is not driving the propeller directly"

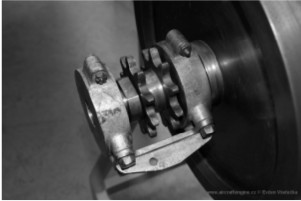

"Chain drive"

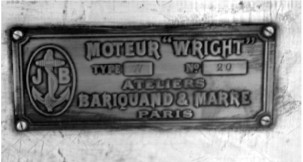

"Plate details"
