-A rotary engine with a fixed external body from the Austrian Sklenar (Ignacz Sklenar) and the Frenchman Mawen.

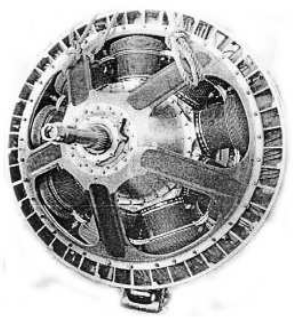

Aberg Rotary
"Aberg Rotary engine"

-The nine-cylinder group rotates inside the outer body. The cylinders are open at the head, coupled to the different intake ports, exhaust ports and fuel injectors.

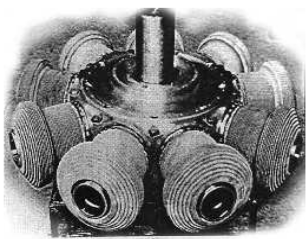

Aberg cylinder group
"Cylinder group"

-We can see the openings at the cylinder heads to coincide with the ports. The most important parts of this engine as packing, crankshaft and reduction gear were based on Bristol parts.

-In the 60's this engine was exhibited at the Malmö Techinal Museum where it arrived as a gift from Nohab Flygmotorfabriken, who had received it from its constructor Paul Aberg.

-It had a displacement of 1344 cubic inches and gave 800 CV at 2200 rpm.

Engines of ABERG

Model: Aberg - Rotativo de 9 cilindros

Arquitecture: 9-cylinder Rotary
Cooling:
Total Displacement: 1344 cu. in.
Bore / Stroke:
Power: 800 CV @ 2200 rpm
Weight:

Other details:

A rotary engine with a fixed external body from the Austrian Sklenar (Ignacz Sklenar) and the Frenchman Mawen.

The nine cylinder group rotates inside the outer body. The cylinders are open at the head, coupled to the different intake ports, exhaust ports and fuel injectors.

Aberg rotary

"Aberg rotary"
