The manufacturer of these engines was Bavarian FlugMotoren AG.

Sylphe rotary engine
“Sylphe rotary engine”

-They made a 5-cylinder radial rotary engine, with a displacement of 377 cu. in. and its power was 35/40 hp at 1,200 rpm.

From Appendix 9: Below we show another illustration of another radial engine (it does not seem rotary) of this brand, whose construction was carried out by Bavarian FlugMotoren AG.

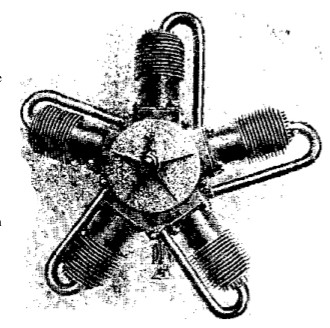

Another Sylphe rotary engine
“Another Sylphe”

-This engine has a different architecture from the one shown in the main text, although it is very symmetrical in the power zone (cylinders). The upper one is rotary.

Engines of SYLPHE

Model: 5-cylinder rotary

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
