Mr. H. Roberts, president of this company from Burbank, California, designed a rotary radial engine with a “Scotch yoke” type linkage system, that is, each two opposed pistons are rigidly joined by a connecting rod with a central slotted hole for the crankshaft.

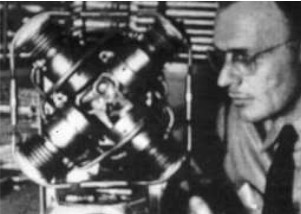

“H. Roberts and his rotary engine”
-Initially it gave 80 HP and it could not be developed beyond 150 HP due to gyroscopic problems.
Engines of ROBERTS AIRCRAFT ENG
Model: Rotary engine with Scotch Yoke
Arquitecture: Cooling: Total Displacement: Bore / Stroke: Power: Weight:
Other details:
The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.
To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.
A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.
The design is from Juan Soler, Sant Cugat, Barcelona
Below we show a flash of version 3
Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
