This is a strange engine concept, a radial type with each cylinder-piston attached to the crankshaft by gears parallel to it.

-It was designed by John Braumwalder and is on display as a prototype in Hangar number 1 at the Pima Air Museum.

Rheem S-10
“Rheem S-10” (PeT)

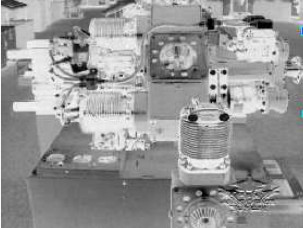

-In the photograph we see its modular construction. With its four cylinders it delivers 250 HP.

-The design is from 1938, and there is no more information of its result.

Engines of RHEEM

Model: radial, 4 cyl.

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
