Palous & Beuse made an air-cooled, horizontally-opposed, two-cylinder engine. It had an automatic intake valve and mechanically operated exhaust valve. Two carburetors, one on each cylinder head.
This company also made 30hp, 50hp, 80hp and 100hp inline 4-cylinder engines. The factory was located in Berlin.
"One of the Palous & Beuse engines"
From Appendix 10: We have found another illustration of the four-cylinder 50hp engine.

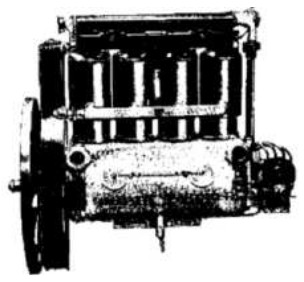

“Palous & Beuse, 4-cylinder inline” (PiP)
Engines of PALOUS & BEUSE
Model: 2 cyl. twin-flat
Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:
Model: 4 cyl. inline 100 CV
Arquitecture: 4-cylinder In-line
Cooling:
Total Displacement:
Bore / Stroke: 130 x 170 mm
Power: 100 CV @ 1500 rpm
Weight: 130 Kg
Model: 4 cyl. inline 30 CV
Arquitecture: 4-cylinder In-line
Cooling: Liquid
Total Displacement:
Bore / Stroke: 100 x 130 mm
Power: 30 CV @ 1300 rpm
Weight: 60 Kg
Model: 4 cyl. inline 50 CV
Arquitecture: 4-cylinder In-line
Cooling: Liquid
Total Displacement:
Bore / Stroke: 120 x 150 mm
Power: 50 CV @ 1500 rpm
Weight: 80 Kg
Model: 4 cyl. inline 80 CV
Arquitecture: 4-cylinder In-line
Cooling: Liquid
Total Displacement:
Bore / Stroke: 120 x 140 mm
Power: 80 CV @ 1500 rpm
Weight: 100 Kg
