The Nuffield Organization was a large industrial firm. It was founded by William Richard Morris, later Lord Nuffield. He owned Morris and he acquired Wolseley in 1927.

-Nuffield Mechanizations Ltd together with Wolseley Aero Engines Ltd (year 1935). In 1952 only Wolseley remains. The Morris-designed engines were made by Wolseley.

-But Nuffield manufactured aircraft engines for ships and tanks.

Liberty-Nuffield engine
“Liberty-Nuffield engine”

-The shown engine appeared in a museum in Australia. We see a large "dampener" in the power output indicating that it was not intended for aviation.

-From Nuffield we have a horizontally-opposed 4-cylinder engine, similar in size to the Lycoming O-235, giving 100 HP at 2,600 rpm. It was built between 1946 and 1948.

From Appendix 5: At the end of 1946 the Nuffield Organization presented a motor that was built by their Engine Branch.

-It was a horizontally-opposed 4-cylinder engine with 3.82 liters of total displacement giving 70 HP at 2,300 rpm.

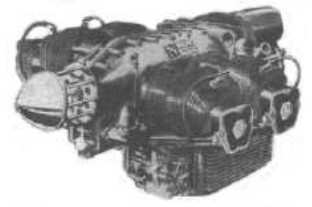

The Nuffield 4-cylinder
"The Nuffield 4-cylinder"

Engines of NUFFIELD

Model: 4 cyl. boxer

Arquitecture: 4-cylinder Horizontally opposed
Cooling:
Total Displacement: 3820 cc
Bore / Stroke:
Power: 70 HP @ 2300 rpm
Weight:

Other details:
Four-cylinder Nuffield

"Four-cylinder Nuffield"

Model: Liberty V-12 (Lic.)

Arquitecture:
Cooling:
Total Displacement:
Bore / Stroke: x
Power:
Weight:

Other details:
Liberty-Nuffield engine

"Liberty-Nuffield engine"
