A.V. Nesterov designed a water-cooled, 7-cylinder engine with a huge gearbox.

Nesterov in Moscow
"Nesterov in Moscow"

-The engine was called "Hypocycle" and some information deals with 120 CV and others with 180 CV. It is from 1914.

From Appendix 10: At the Monino Museum in Moscow Nesterov's engine is exhibited. It was actually based on the Salmson M-7 (inspired, rather). The M-7 appears in the Salmson chapter of this publication.

Nesterov with 7 cylinders
“Nesterov with 7 cylinders”

-It has a much "cleaner" design than the Salmson. It is distinguished by a long extension for the propeller.

Nesterov, side view
“side view”

-The valve control rod is unique. Possibly with two strokes, short and long.

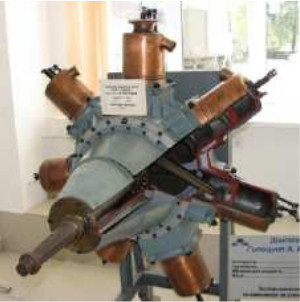

Nesterov, angled front view

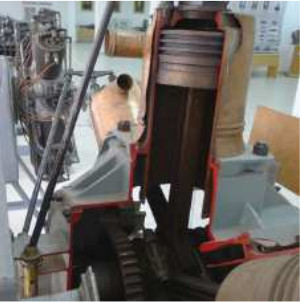

Nesterov, cylinder details
“Angled front view and cylinder cutaway” (Russian web photos)

-It gives 120 CV and it was known as "Gipotsikl" which means, translated: "Hypocycle". We do not know the meaning and reason for the name.

Engines of NESTEROV

Model: Hypocycle, 7 cyl. radial

Arquitecture: 7-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 120 CV
Weight:

Other details:
Nesterov 7-cylinder, angled front view

"Nesterov 7-cylinder, angled front view"

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
