Morton made a 14-cylinder radial engine. At the moment we have a scale model of this engine.

Radial Morton
“Radial Morton”

From Appendix A4/6: Regarding this name whose full history has not yet been possible to get, we now have news that the M5 is a LeBlond based, 4-stroke, 5-cylinder radial engine.

Morton M5 model
“Morton M5 model”

-It was made in the 1940’s, and was designed by Glen Morton of Morton Aviation.

-They were later marketed by Burgess Battedry Corp. as the Burgess-Morton M5. The existence of an M2 is mentioned.

-The above photograph is from the engine shown at the San Diego Air and Space Museum located in Balboa Park.

-A miniature 14-cylinder Morton engine belongs to the collection of Mr. J. Castellsaguer in Mataró, Barcelona.

-As no original full-size Morton 14-cylinder engine has been located yet, research is continuing, as doubts about its existence begin to raise.

-They were specialized in small engines for large models and similar uses in target planes, etc. We have now located an in-line four cylinder.

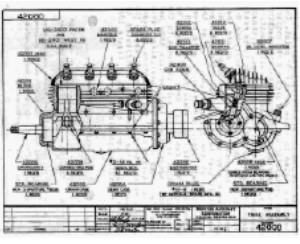

Esquema del motor Morton modelo 42

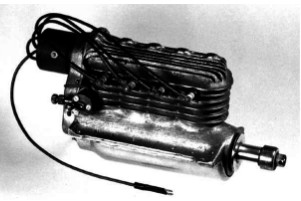

Motor Morton model 42
“Morton model 42”

Engines of MORTON

Model: small 4 cyl. inline, Mod. 42

Arquitecture: 4-cylinder In-line
Cooling:
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:
Morton model 42

"Morton model 42"

Model: Small radial (M-5)

Arquitecture: 4-stroke5-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power:
Weight:

Other details:
Morton M-5

"Morton M-5"

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
