MARK FLUGMOTOREN

(Germany)


MARK FLUGMOTOREN engine specifications

Mark-Flugmotoren was a branch of the "Stahlwerk Mark" firm that manufactured aircraft. In 1923 they decided to produce their own engines under the Mark-Flugmotoren name.

-These engines were designed by Professor Dr. Ing. H. Baer. For this reason these engines are sometimes referred to as Mark-Baer.

-We know of three radial engines.

-The St.M. 3, a 3-cylinder radial engine giving 35/39 CV.

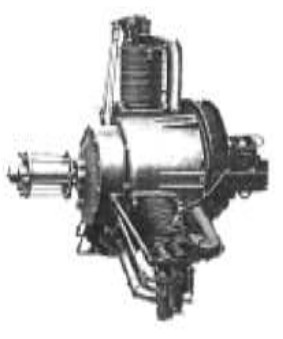

Mark-Flugmotoren 3 cylinder side view

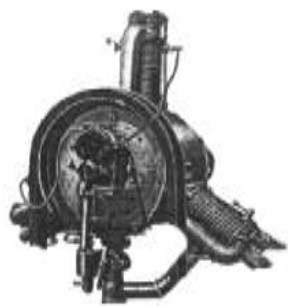

Mark-Flugmotoren de 3 cylinder rear view
"3-cylinder engine"

-The St.M. 5, A radial engine with 5 cylinders that gave 55/63 CV.

Mark Flugmotoren 5-cylinder engine, front view

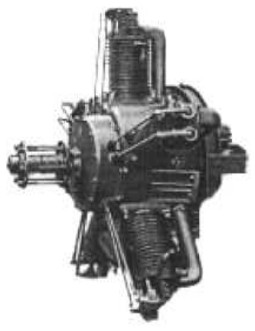

Mark-Flugmotoren 5-cylinder engine, side view
"5-Cylinder engine"

-The St.M. 9, A 9 cylinder radial engine giving 110/120 CV.

Engines of MARK FLUGMOTOREN

Model: St.M.3, 3 cyl. radial

Arquitecture: 3-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 39 CV
Weight: 70 Kg

Other details:
Mark-Baer, 3-cylinder side view

"Mark-Baer, 3-cylinder side view"

Model: St.M.5, 5 cyl. radial

Arquitecture: 5-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 63 CV
Weight: 104 Kg

Other details:
Mark Baer, 5 cylinder front view

"Mark Baer, 5 cylinder front view"

Model: St.M.9, 9 cyl. radial

Arquitecture: 9-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 120 CV
Weight: 149 Kg

Other details:
