This is Modena Avio Engines. The MAE-323 is a radial three-cylinder engine.

-The MAE 323R version has a mechanical gearbox.

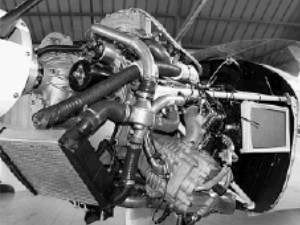

MAE-323, instalado
“El MAE-323, instalado”

From Appendix 11: It seems that this company has been founded in 2003 and went out of business in 2015.

Engines of MAE

Model: MAE-323

Arquitecture: 4-stroke3-cylinder Radial
Cooling: Liquid
Total Displacement: 2238 cc
Bore / Stroke: 100 x 95 mm
Power: 130 CV @ 4500 rpm
Weight: 82 Kg

Other details:
Model: MAE-323R

Arquitecture: 4-stroke3-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 150 CV @ 5500 rpm
Weight: 93 Kg

Other details:

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
