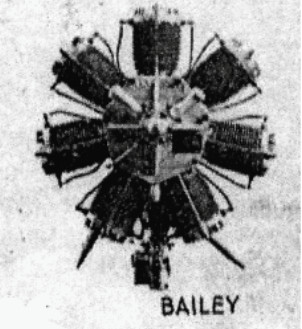

In a document of the year 1927 appears this radial 7-cylinder engine that was known as the C7R "Bailey
“El Bailey C7R de la Klamáth Air Service Co.”
-It gave 140 hp at 1,850 rpm and weighed 325 pounds, dry.
Arquitecture: 7-cylinder Radial
Cooling:
Total Displacement:
Bore / Stroke:
Power: 140 HP @ 1850 rpm
Weight: 325 Lb
"Klamáth Air Service Co. C7R "Bailey""
