Kühne engines were manufactured around 1924.

-They were intended for light aircraft or motorgliders.

-The Kühne engine had two horizontally opposed cylinders with 593 cc of displacement, 84 mm bore and 96 mm stroke.

-It gave 12 hp at 1,600 rpm and reached 24 hp at 2,800 rpm.

From Appendix 12: Horizontally-opposed two-cylinder engine (boxer) that gave 24 CV at 2,800 rpm. Towards the year 1925.

Motor boxer Kühne, vista posterior
Motor boxer Kühne, vista frontal
“Kühne boxer engine”

Engines of KÜHNE

Model: 24 CV, 2 cyl. boxer

Arquitecture: 2-cylinder Horizontally opposed
Cooling:
Total Displacement: 593 cc
Bore / Stroke: 84 x 96 mm
Power: 24 CV @ 2800 rpm
Weight:

Other details:

12 CV at 1,600 rpm
24 CV at 2,800 rpm

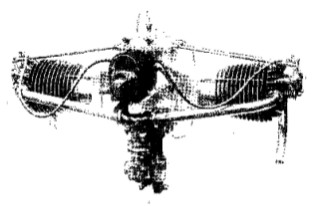

Kühne boxer engine, rear view

"Kühne boxer engine, rear view"
