ICP is a company that builds light airplanes, and since 2014 it also builds its own engine designed by Franco Lambertini, the designer of the engines for Morini motorcycles. The design of this engine has been done from a clean sheet, especially for aviation, without relying on the other engines. The 115 HP model is the M-09

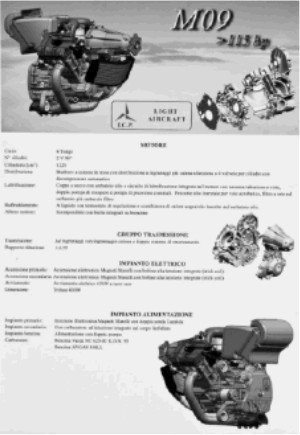

“Folleto del M-09”

-The engine is a 2-cylinder V-engine with four valves per cylinder and fuel injection. It has a displacement of 1223 cc, and gives 155 CV at 7,000 rpm.

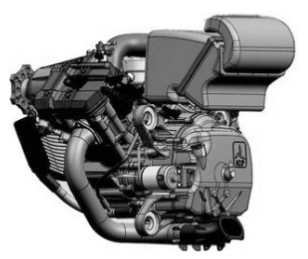

“ICP M-09 engine”

“Inner skeleton of the engine”

From Appendix 12: Two new views of ICP engine model M-09.

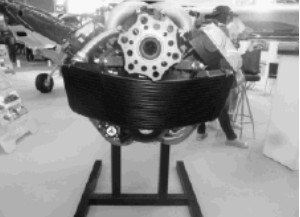

"Front view with formidable propeller hub and water radiator"

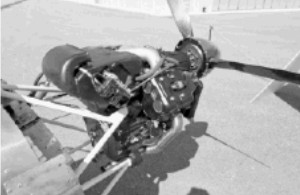

"The M-09 already on a bench and with a propeller"

-In the above photo, we can see the dynamic air intake facing forward on the air filter box.

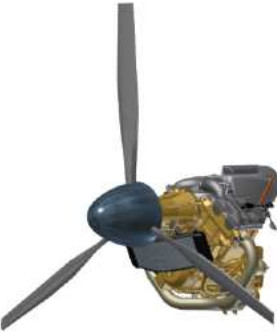

"Computerized view of the ICP M-09"

-The Italian firm shows us more computerized designs of its M-09 engine.

“ICP M-09, front right view”

-The arrangement of two cylinders in V and the elevated gearbox are clearly seen.

“Front view”

-The below illustration in "X-rays" shows us the four valves per cylinder.

"Translucent simulation of the M-09 engine"

-The reduction gearbox, which is very high, requires other intermediate gear. The alternator is on the crankshaft extension.
