By 1910 this manufacturer offered two radial rotary engines with 7 cylinders.

-The 30-35 HP and the 70-80 HP, weighing 3 lbs per HP. This was a high index since in the war and post war it was 1 Kg/HP and later below the Kilo.

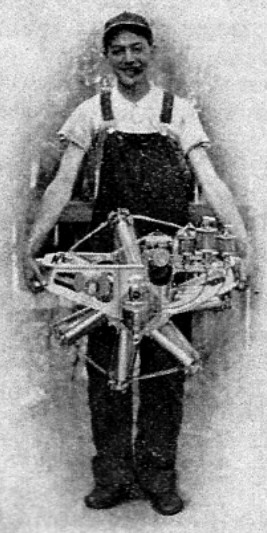

Holmes engine hold by a laborer
“Holmes engine hold by a laborer”

-Below we show a 1910 ad, date of the engine offer.

“Holmes Rotary Motor ad”
“Holmes Rotary Motor ad”

Engines of HOLMES ROTARY MOTOR

Model: 7 cyl. rotary 30-35 HP

Arquitecture: 7-cylinder Rotary
Cooling:
Total Displacement:
Bore / Stroke:
Power: 35 HP
Weight:

Other details:
Model: 7 cyl. rotary 70-80 HP

Arquitecture: 7-cylinder Rotary
Cooling:
Total Displacement:
Bore / Stroke:
Power: 80 HP
Weight:

Other details:
