Updated: 27-Feb-2019
H & E is a motor-glider manufacturer based in Madrid. They offer two models, the R-80 and the R-120 and besides, to meet the needs of customers, they can adapt their chassis for engines of other manufacturers such as the Simonini and CorsAir. HE also had the R-100.
“Complete chassis with a HE engine”
“HE, R-80”
-The R-80, single cylinder with a 4 to 1 reduction gives a variable power range according to the engine rpm. It has a displacement of 80 cc.
-The following details are approximate: 6 CV at 3,000 rpm. 9 CV at 4,800, 12 CV at 7,600 and 16 CV at 9,400 rpm.
“Good looking HE R-120”
-The R-120 has 120 cc of displacement. The powers are variable between 8 CV at 6,000 rpm and 20 CV at 9,700 rpm.

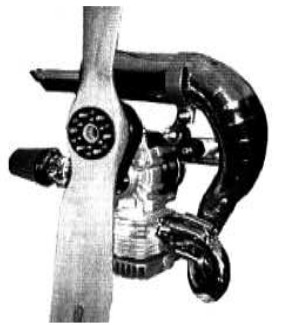

“HE adaptation”
-In the HE illustration above, we show one of the engines chosen by the client, and that is adapted by HE, according to the requested needs. All HE engines have a beautiful and careful finish.
Engines of HE (H & E)
Model: R-100
Arquitecture: Single-cylinder
Cooling:
Total Displacement:
Bore / Stroke:
Power:
Weight:
Model: R-120
Arquitecture: Single-cylinder
Cooling:
Total Displacement: 120 cc
Bore / Stroke:
Power: 20 CV
Weight:
The powers are variable between 8 CV at 6,000 rpm and 20 CV at 9,700 rpm.
Model: R-80
Arquitecture: Single-cylinder
Cooling: Air
Total Displacement: 80 cc
Bore / Stroke:
Power: 20 CV
Weight:
6 CV at 3000 rpm.
9 CV at 4800 rpm,
12 CV at 7600 rpm,
16 CV at 9400 rpm.
