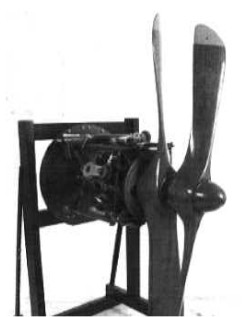

In 1916 a double row radial rotary was made in the city of Enfield, NSW, designed by Harold "Curley" Eagle.
“Harold rotary engine”
-The rear row feeds supercharging the front one since it is an engine running with the two-stroke cycle.
-The cylinder block rotates in one direction driving one propeller and the crankshaft drives the front propeller. Both rotating in opposite directions.
The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.
To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.
A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.
The design is from Juan Soler, Sant Cugat, Barcelona
Below we show a flash of version 3
Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
