The Hansen & Snow factory was in Pasadena, CA. The engine that is built in 1910 is very similar to those the Wright brothers.

-It was a water-cooled, 4 cylinder, in-line engine that gave 30/35 HP.

-They were two partners, W.G. Hansen and L.L. Snow. The history of this 30 HP engine is that it flew for some time on a Wright-type aircraft and for an extended period on an airship.

-The cylinders were covered by copper plate and the valves were controlled by a camshaft on top of the cylinder heads. It had a Stromberg carburetor and Bosch magneto.

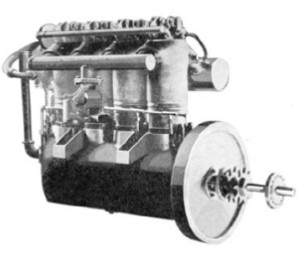

“Hansen & Snow, 30/35 HP”

-It had a displacement of 226.2 cu. in. and its weight without flywheel was 105 lbs.

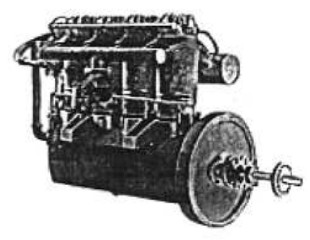

From Appendix 12: Below we show an improved and clearer photo of this engine.

"Better defined illustration of this engine"
