A small 5 hp engine with two cylinders being rotary!. It was based on Mr. Scott's patents. The construction company was Granville Motor Co. in Gloucester.

-They made this design with the intention to make engines of several radial cylinders, and of various sizes and powers.

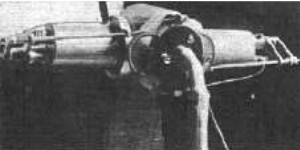

Granville's small 2-cylinder rotary engine
“The small 2-cylinder rotary engine”

Granville's 2-cylinder engine running
“While running it practically disappears”

Engines of GRANVILLE

Model: 2 cyl. rotary

Arquitecture: 2-cylinder Rotary
Cooling:
Total Displacement:
Bore / Stroke:
Power: 5 HP
Weight:

Other details:
Granville's small 2-cylinder rotary

"Granville's small 2-cylinder rotary"
