General Vehicle Co. manufactured the Gnome Monosoupapes with a power of 100 hp in the United States on behalf of the UK and for war needs. It is known that they delivered at least 250 engines.

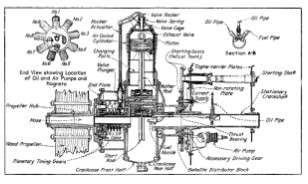

From Appendix 10: Below we provide a diagram of this rotary radial engine made in the USA under Gnome license.
“General Vehicle Co. schematic diagram”
Engines of GENERAL VEHICLE Co
Model: Gnome Monosoupape, 100 HP (Lic.)
Arquitecture: Radial Cooling: Total Displacement: Bore / Stroke: Power: 100 HP Weight:
Other details:
The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.
To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.
A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.
The design is from Juan Soler, Sant Cugat, Barcelona
Below we show a flash of version 3
Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
