Motors for ULM, popular in Europe, reliable and safe.

-Made by the Fuji-Sunbeam group and in conventional ways.

-There are some main production lines such as 25, 34 and 44.

-All of them are two-stroke engines with forced cooling by fan. They have belt and pulley reducing gear.

Fuji-Robin EC-34PM
“Fuji-Robin EC-34PM”

-The EC-25PS engines had one cylinder with a displacement of 244 cc, and gave 18 hp at 6,000 rpm.

-The 2-cylinder EC-34PM had a displacement of 333 cc giving 38 hp at 6,500 rpm and the EC-44PM with 2 cylinders as well, had a displacement of 432 cc and gave 50 hp at 6,500 rpm. They can have an electric starter.

From Appendix A6/6: The Goldwing ultralight uses a 333 cc Fuji-Robin engine with 32 hp of power.

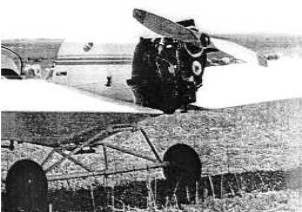

The Goldwing with the Fuji-Robin in Pusher mode
"The Goldwing with the Fuji-Robin in Pusher mode"

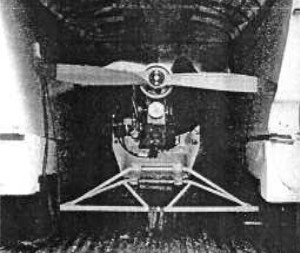

The Goldwing folds its wings for transport
"The Goldwing folds its wings for transport"

-This Fuji-Robin engine has a single inverted cylinder and is geared by multiple belt. The estimated consumption is 4 liters per hour.

From Appendix 12: The 50 hp EC-44PM engine with a displacement of 440 cc was installed on the "Guepard" autogiro.

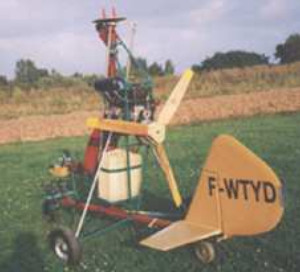

Fuji-Robin EC-44PM on the Guepard autogyro
"With two upright cylinders"

Engines of FUJI-ROBIN

Model: EC-25PS

Arquitecture: 2-stroke Single-cylinder
Cooling: Air
Total Displacement: 244 cc
Bore / Stroke:
Power: 18 HP @ 6000 rpm
Weight:

Other details:
Model: EC-34PM

Arquitecture: 2-stroke2-cylinder In-line
Cooling: Air
Total Displacement: 333 cc
Bore / Stroke:
Power: 38 HP @ 6500 rpm
Weight:

Other details:
Fuji-Robin EC-34PM

"Fuji-Robin EC-34PM"

Model: EC-44PM

Arquitecture: 2-stroke2-cylinder In-line
Cooling: Air
Total Displacement: 440 cc
Bore / Stroke:
Power: 50 HP @ 6500 rpm
Weight:

Other details:
